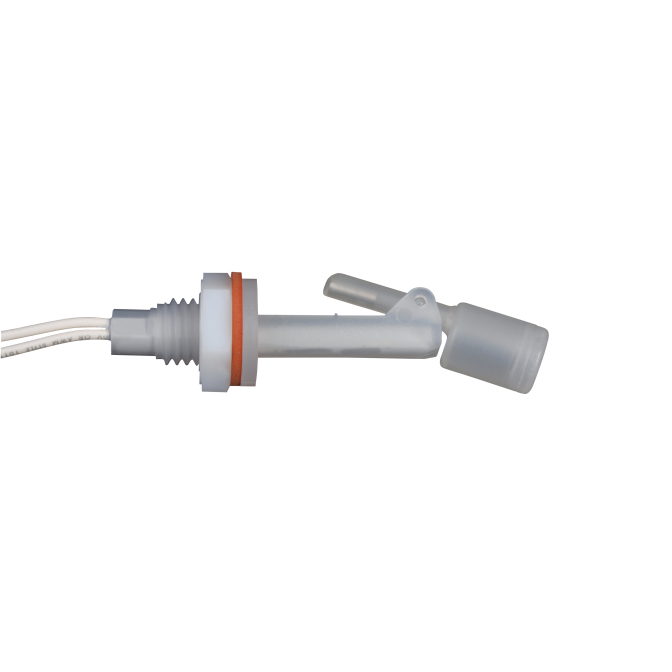

M8790 Side Mount Level Switch
Durable polypropylene side-mount float switch, configurable logic, rated 221 °F/100 PSI, available in 1 day.
Built with FDA-grade polypropylene for resilient corrosion resistance
SPST logic configurable as Normally Open or Closed
Compact 5/8-11 UNC bulkhead design, rated for 221 °F and 100 PSI
The M8790 Side Mount Level Switch features a durable polypropylene float and stem, engineered for reliable single-point level detection through tank walls. Its configurable SPST switch can operate in either normally open or closed mode, offering flexibility for varied control systems. Designed to withstand temperatures up to 221 °F and pressures to 100 PSI, and fully certified with CE, CSA, UL, and NSF approvals, this switch is built for demanding environments like food service, electroplating, or condensate monitoring. With a fast 1-day lead time and backed by a 1-year warranty, MadisonSensor recommends requesting a quote to confirm current pricing and specifications and is ready to support custom integrations.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 5/8-11 UNC |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
