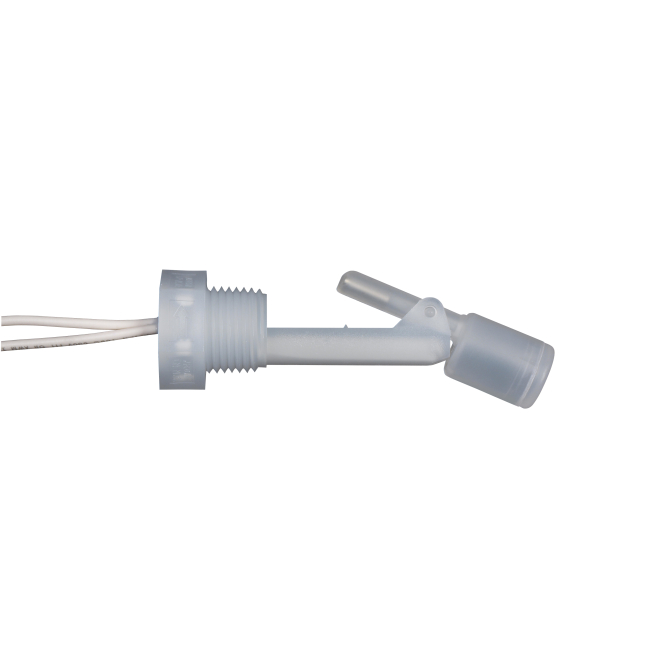

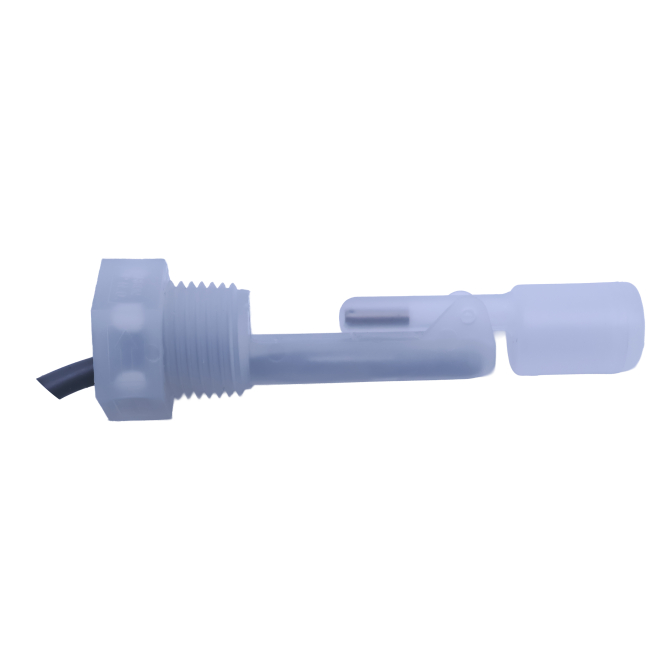

M8750-010/32-6.56 Side Mount Level Switch (2M Cable)
Polypropylene side-mount float switch with selectable logic and 2 m cable, rated 221 °F/100 PSI—quick shipping.
Polypropylene float & stem—food-safe, corrosion-resistant
Configurable SPST logic (NO/NC) supported by a 30 W switch
Extended 2 m cable for flexible placement and quick availability
- Buy 50 for $34.20 each and save 5%
- Buy 100 for $32.40 each and save 10%
- Buy 250 for $30.60 each and save 15%
The M8750-010/32-6.56 Side Mount Level Switch adds flexibility and convenience with a robust 2-meter PVC-jacketed cable, simplifying installation in complex systems. Constructed with a durable polypropylene float and stem, it offers configurable SPST logic (normally open or closed) for versatile control integration. Rated for temperatures up to 221 °F (105 °C) and pressures up to 100 PSI, and certified with CE, CSA, UL, and NSF badges, this switch delivers reliability in demanding industrial, food, or condensate applications—all backed by a 1-year warranty and fast 1-day stock availability. MadisonSensor encourages requesting a quote to verify current specifications and is ready to assist with custom solutions.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | (2 Meter) Cable, 2 Conductor, 22 AWG, Gray PVC Jacketed |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
