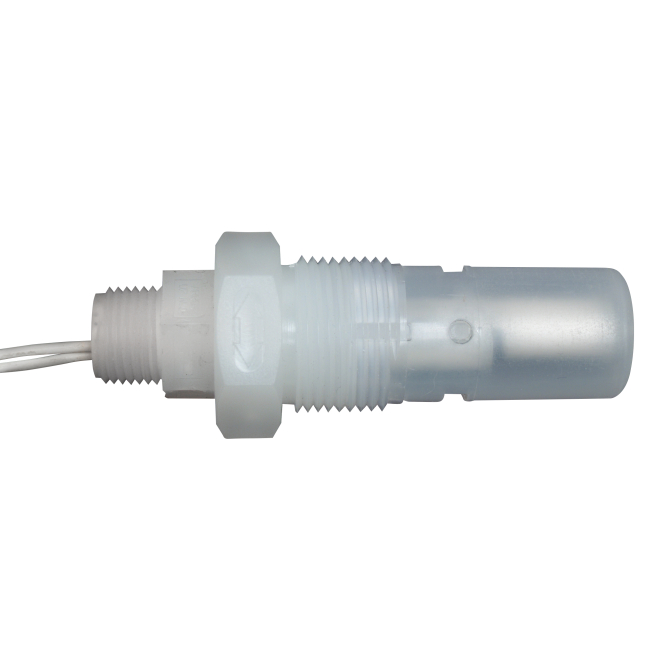

M8705 Side Mount Float Switch
Durable polypropylene side-mount float switch with slosh shield and SPST logic, rated for 221 °F/100 PSI—quickly available.
Polypropylene stem and float with slosh shield for stable sensing
30 W SPST switch logic, field-ready for fast deployments
Rated for 221 °F / 100 PSI with same-day stock availability
- Buy 10 for $42.75 each and save 5%
- Buy 25 for $40.50 each and save 10%
- Buy 100 for $38.25 each and save 15%
The M8705 Side Mount Float Switch features a robust polypropylene stem and float equipped with a slosh shield, making it ideal for turbulent or boiling environments. Mounted via a 1″ × ½″ NPT adapter, its SPST 30 W switch logic ensures reliable operation. Rated for temperatures up to 221 °F (105 °C) and pressures up to 100 PSI (7 BAR), and certified to CE, UL, and NSF standards, this switch delivers both durability and performance. With in-stock availability ready for quick shipment, MadisonSensor recommends requesting a quote to verify pricing and exact specifications and stands ready to supply tailored configurations as required.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Slosh Shield | Yes |
| Approvals | CE, cULus E54633, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
