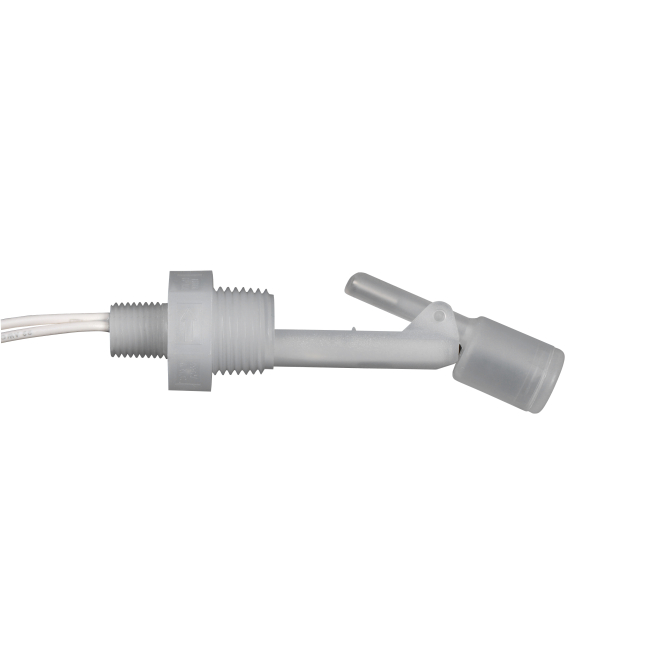

M8710 Side Mount Level Switch
Polypropylene side-mount float switch with selectable logic, rated 221 °F/100 PSI.
Durable polypropylene float and stem
Selectable SPST logic (Normally Open or Normally Closed)
Rated for 221 °F / 100 PSI, with fast 1-day availability
The M8710 Side Mount Level Switch features a sturdy polypropylene float and stem designed for horizontal tank sidewall installation. It offers flexible logic options (normally open or closed) via a reliable 30 W SPST switch. Rated to withstand temperatures up to 221 °F (105 °C) and pressures up to 100 PSI, and certified to CE, UL, CSA, and NSF standards, it's ideal for food processing, agriculture, and acidic media applications. With same-day availability and MadisonSensor’s precision engineering, it’s ready to be deployed immediately. Request a quote to confirm latest pricing and specifications, and explore custom configurations tailored to your system.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
