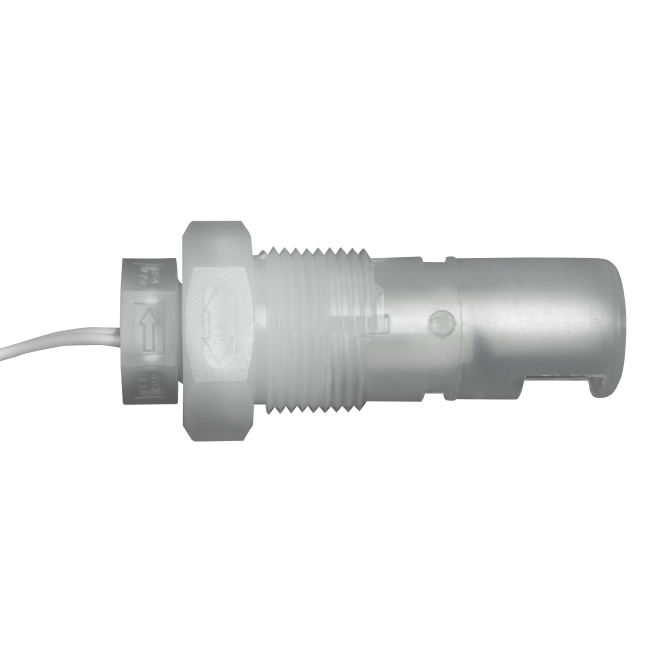

M8755 Side Mount Float Switch
Robust polypropylene side-mount float switch with slosh shield, configurable logic, rated 221 °F/100 PSI, ready to ship.
Durable polypropylene construction with slosh shield
Configurable SPST logic (NO/NC) for flexible control
Compact 1″ NPT side-mount design, rated to 221 °F/100 PSI
The M8755 Side Mount Float Switch is a rugged, polypropylene sensor designed for horizontal side mounting—complete with a slosh shield to maintain stability in turbulent or boiling fluids. Its field-selectable SPST switch can be configured for either normally open or closed logic, delivering versatile performance in industrial, foodservice, and acidic environments. Rated for temperatures up to 221 °F (105 °C) and pressures up to 100 PSI, and fortified with CE, UL, CSA, and NSF approvals, this switch ensures reliability. With just a 1-day lead time and a 1-year warranty, MadisonSensor encourages requesting a quote for pricing and specifications and stands ready to tailor custom solutions as needed.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Slosh Shield | Yes |
| Approvals | CE, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
