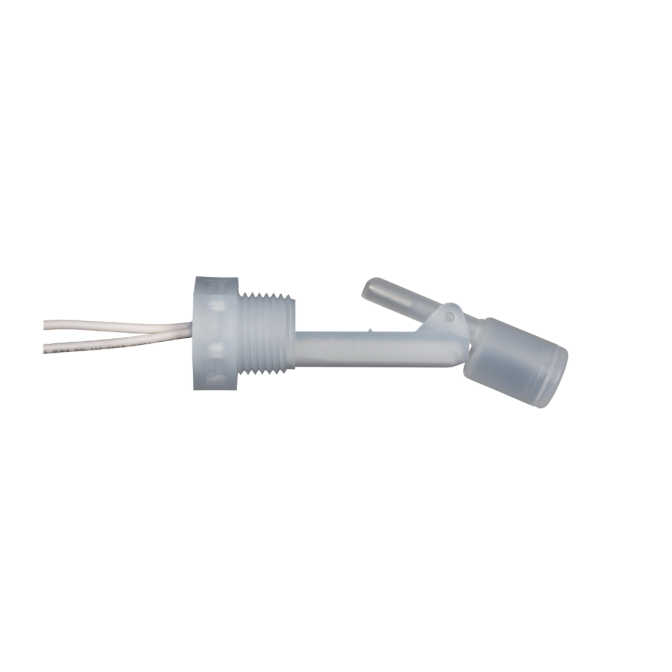

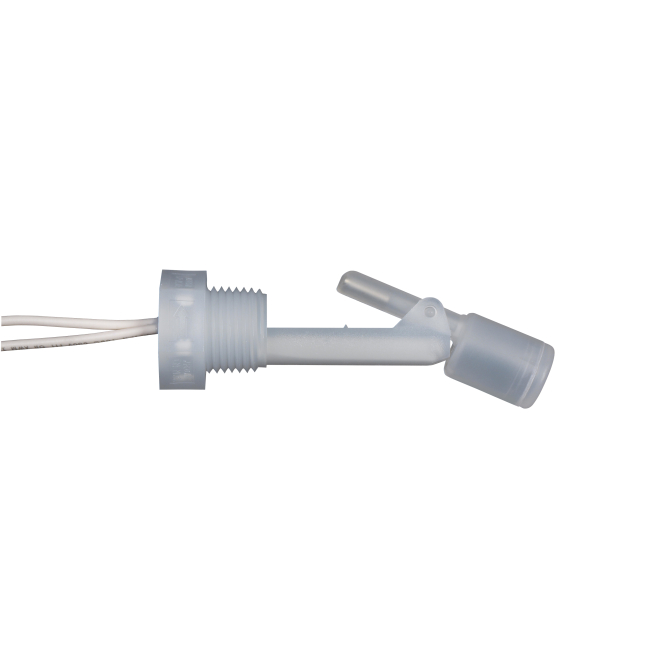

M8750 Side Mount Level Switch (24" lead wires)
Polypropylene side-mount float switch with configurable SPST logic, rated to 221 °F/100 PSI—stock ready.
Lightweight polypropylene float & stem (FDA-approved for food use)
Configurable SPST logic (NO or NC)
Compact ½″ NPT side-mount design with fast shipping
- Buy 10 for $28.50 each and save 5%
- Buy 25 for $27.00 each and save 10%
- Buy 100 for $25.50 each and save 15%
The M8750 Side Mount Level Switch is a reliable, economical float sensor made entirely from FDA-grade polypropylene—ideal for acidic, food, or low-temperature applications. Its side-mounted, ½″ NPT configuration allows installation through tank walls, offering single-point level detection with flexible logic options (NO or NC) via a 30 W SPST switch. Rated for 221 °F and 100 PSI, and backed by CE, CSA, UL, and NSF approvals, it offers trusted performance with a 1-year warranty and same-day availability. MadisonSensor recommends requesting a quote to confirm current pricing or specifications and can customize configurations to meet your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
