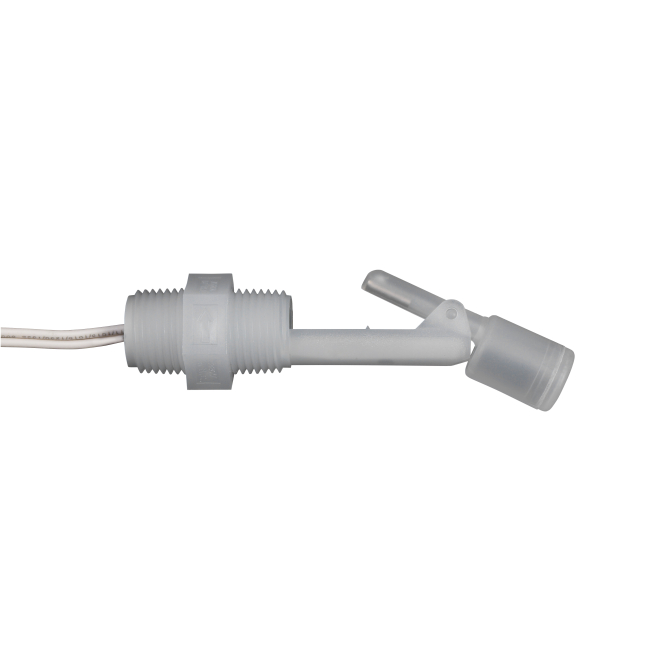

M8700 Side Mount Level Switch
Polypropylene side-mount float switch for condensate systems—selectable logic, high-temp/pressure rated, fast fulfillment.
FDA-grade polypropylene float and stem
Flexible SPST logic (NO or NC) for control versatility
Engineered for ¾″ HVAC condensate piping, rapid availability
- Buy 10 for $28.50 each and save 5%
- Buy 25 for $27.00 each and save 10%
- Buy 100 for $25.50 each and save 15%
The M8700 Side Mount Level Switch is engineered for robust liquid detection in HVAC condensate and general single-point applications. Fabricated entirely in polypropylene for optimal chemical resistance, it features selectable SPST logic—normally open or closed—for flexible integration. Rated for operation up to 221 °F and 100 PSI, and equipped with NSF, UL, CSA, and CE approvals, it offers dependable performance with same-day stock availability. MadisonSensor recommends requesting a quote to confirm detailed pricing and specifications, and can configure custom solutions for OEM and field-adapted needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169, Florida DEP EQ682 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
