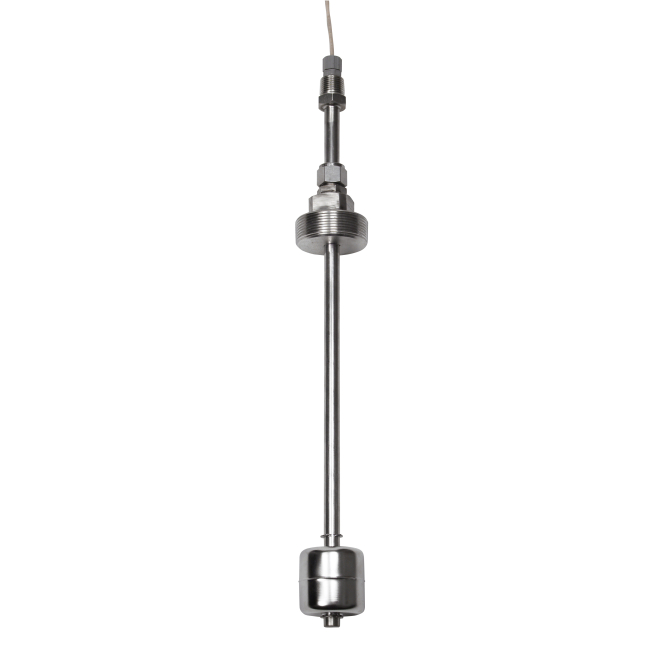

M5602-7808-2 Adjustable Float Switch (25.5")
Flexible-length 316 SS float switch with SPST logic, adjustable stem (1.5–24″), and high-temp/pressure capability.
Adjustable switch height: –2″ to +21″
Rugged 316 SS construction with 2″ NPT mounting
SPST switch rated 60 W, 200 PSI/392 °F — CE/CSA/UL approved
- Buy 10 for $441.15 each and save 15%
- Buy 25 for $389.25 each and save 25%
The M5602-7808-2 Adjustable Float Switch blends durability and flexibility in one stainless-steel vertical sensor. Engineered for industrial-grade level detection, its adjustable stem spans from 1.5″ to 24″, allowing a –2″ downward or +21″ upward range—ideal for adapting to varied tank configurations. Equipped with a standard 60 W SPST switch, reversible logic, and certifications including CE, CSA, and cULus, it ensures reliable performance in environments up to 392 °F and 200 PSI. With a 1-year warranty and 5-day lead time, MadisonSensor advises requesting a quote for precise specs and welcomes custom configurations to meet your exact needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Teflon jacketed cable |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
