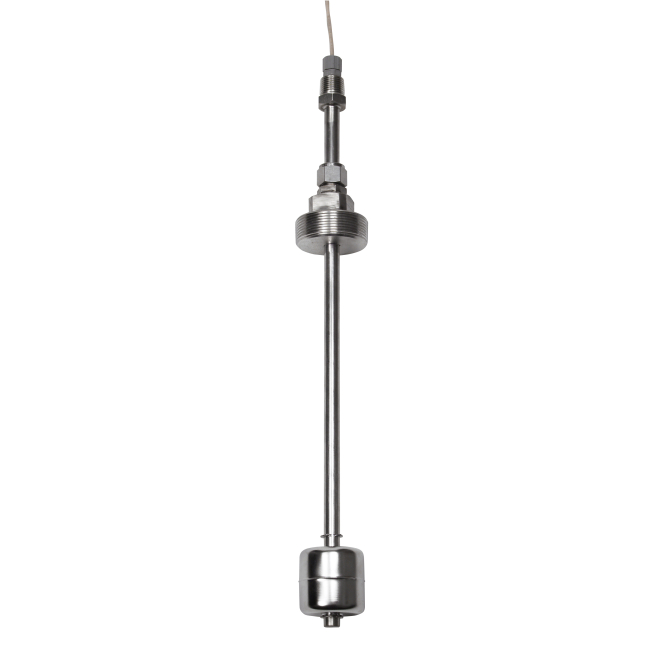

M5602-7808-4 Adjustable Float Switch (49.5")
Adjustable-length 316 SS float switch with SPST logic, rated to 200 PSI/392 °F, in-stock and ready for fast deployment.
Adjustable height: −2″ to +45″ for flexible mounting
Durable 316 SS float with SPST logic
Heavy-duty, 200 PSI/392 °F rated operation
The M5602-7808-4 Adjustable Float Switch features a stainless-steel vertical design with a long, user-adjustable stem—offering −2″ downward and +45″ upward adjustments for versatile installation across tank systems. The 60 W SPST switch is field-reversible between normally closed and open logic, making it adaptable for varied control and monitoring configurations. With a robust 2″ NPT mount, 316 SS construction, and ratings up to 200 PSI and 392 °F, plus CE/CSA/cULus approvals, this switch delivers reliable performance in demanding applications. MadisonSensor recommends requesting a quote to confirm current pricing and specs, and offers customized solutions to meet your specific system needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Teflon jacketed cable |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
