M5602-7808-3 Adjustable Float Switch (37.5")
Adjustable 37.5″ stainless-steel float switch with SPST logic, high-temperature and pressure capability, and CE/CSA/UL certification.
Long 37.5″ length with adjustable reach
Robust 316 SS build with SPST logic
Rated to 392 °F and 200 PSI; CE/CSA/UL approved

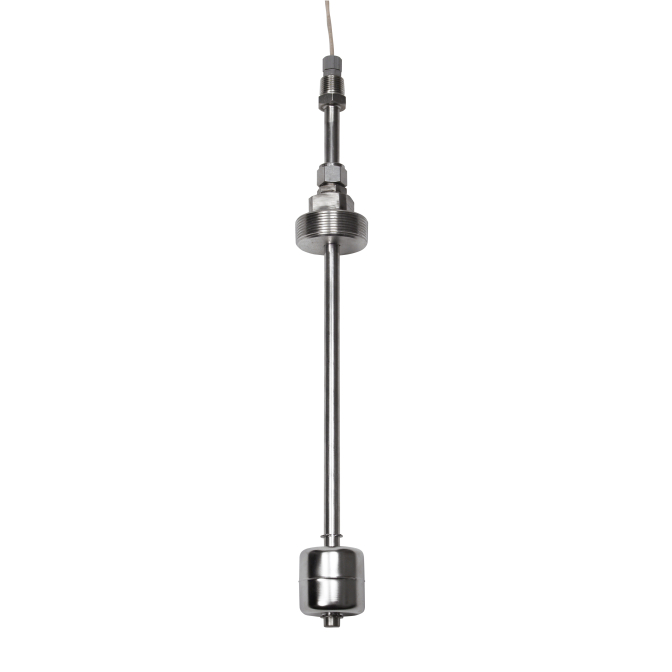

The M5602-7808-3 Adjustable Float Switch features a sturdy 316 stainless-steel body and a long adjustable 37.5″ stem that can be tuned ±9″ using a compression fitting. This vertical switch is engineered for precise liquid level detection in high-temperature and high-pressure environments, operating reliably at temperatures up to 392 °F and pressures up to 200 PSI. With certifications including CE, CSA, and cULus, and backed by a 1-year warranty, MadisonSensor recommends requesting a quote for final price and specifications. Custom configurations are available to best fit your system needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Teflon jacketed cable |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
