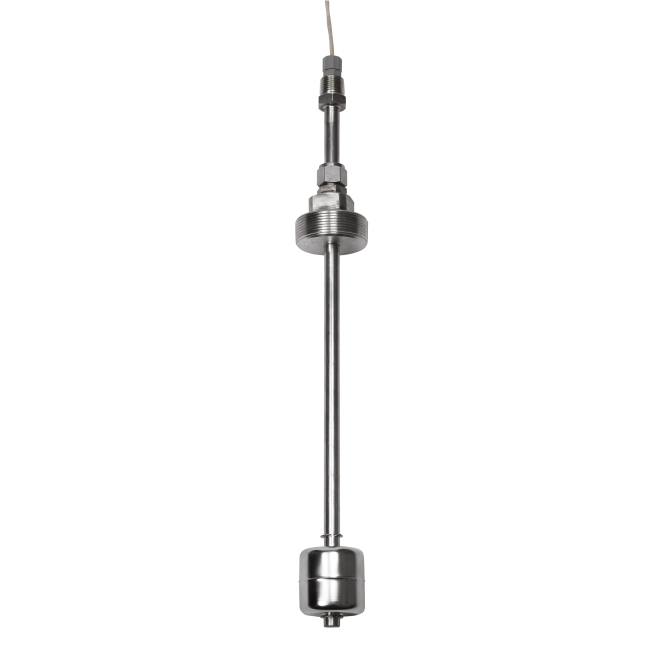

M5602-7808-5 Adjustable Float Switch (61.5")
Durable stainless steel float switch for high-temperature, high-pressure fluid level control.
Withstands up to 200 PSI pressure
Operates at temperatures to 392 °F
Reliable 316 stainless steel design
The M5602-7808-5 Adjustable Float Switch (61.5") from MadisonSensor is designed for demanding industrial fluid level monitoring. Built with 316 stainless steel for both the float and stem, it offers durability in high-temperature and high-pressure environments up to 200 psi and 392 °F. This switch is ideal for OEMs, process engineers, and facility managers needing dependable level sensing in tanks and vessels. MadisonSensor recommends requesting a quote for final price and specification confirmation, and also offers custom solutions to meet unique application requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Teflon jacketed cable |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
