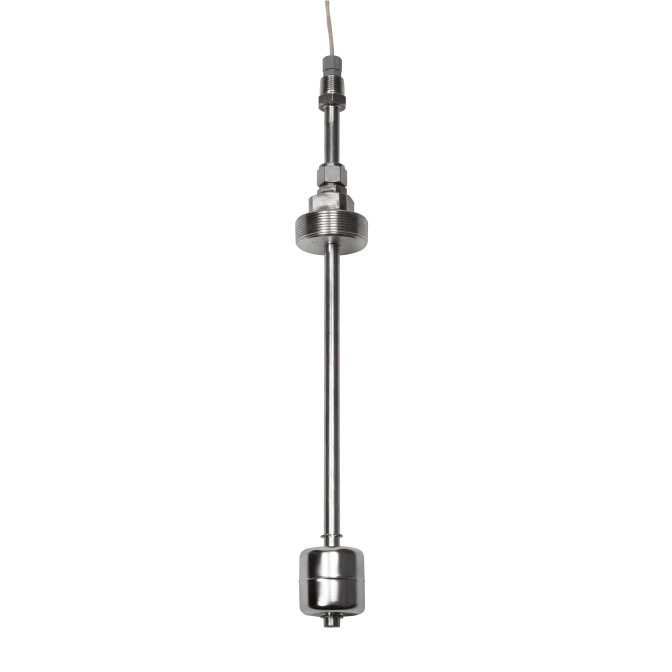

M5602-7808-6 Adjustable Float Switch (73.5")
Adjustable 73.5″ 316 SS float switch with field-tunable stem (–2″ to +69″), SPST logic, and high-temp/pressure capability.
Adjustable stem: –2″ to +69″ range
Durable 316 SS vertical construction
SPST switch rated for 200 PSI and 392 °F
The M5602-7808-6 Adjustable Float Switch features a rugged 316 stainless-steel design with a field-adjustable 73.5″ stem—allowing up to 69″ upward or 2″ downward adjustment via a compression fitting. This robust, vertical sensor delivers dependable level detection with normally-closed SPST logic, handling temperatures up to 392 °F and pressures up to 200 PSI. With certifications from CE, CSA, cULus, and NSF/ANSI 169, along with a 1-year warranty and a prompt 5-day lead time, MadisonSensor recommends requesting a quote to confirm pricing and specifications. Custom configurations are available upon request to suit your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Teflon jacketed cable |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
