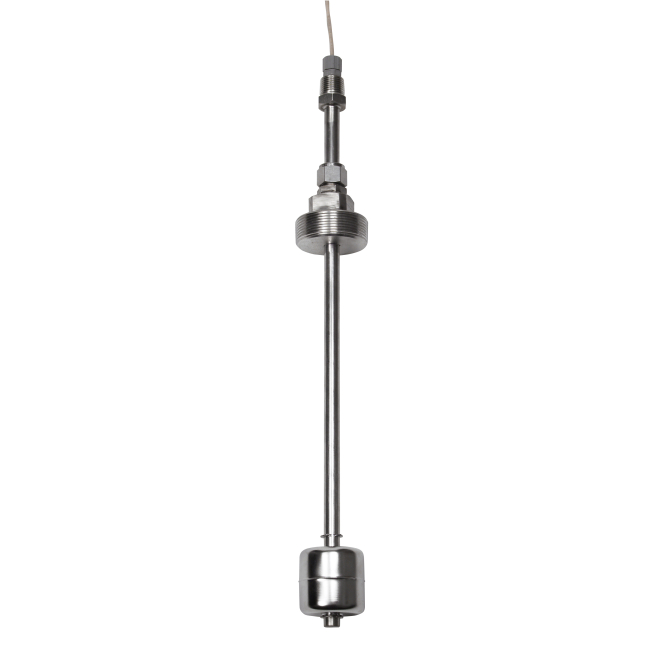

M5602-7808-1 Adjustable Float Switch (13.5")
Adjustable 316 SS float switch with 1-day lead time—tunable depth, 200 PSI/392 °F rated, and widely certified.
Adjustable float depth: –2″ to +9″
Heavy-duty 316 SS construction
1 day lead time with broad approvals
The M5602-7808-1 Adjustable Float Switch offers versatile, field-adjustable level sensing with a robust 316 stainless-steel float and stem. Engineered for easy fine-tuning—allowing 2″ downward or 9″ upward adjustment—the switch adapts to varied tank configurations. Rated at 200 °F and 200 PSI, and compliant with CE, CSA, cULus, and NSF standards, it ensures dependable performance in demanding environments. MadisonSensor recommends requesting a quote for up-to-date pricing and specifications and can supply custom-configured solutions to suit your exact needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 72”, 22 AWG, 2 conductor, Teflon jacketed cable |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
