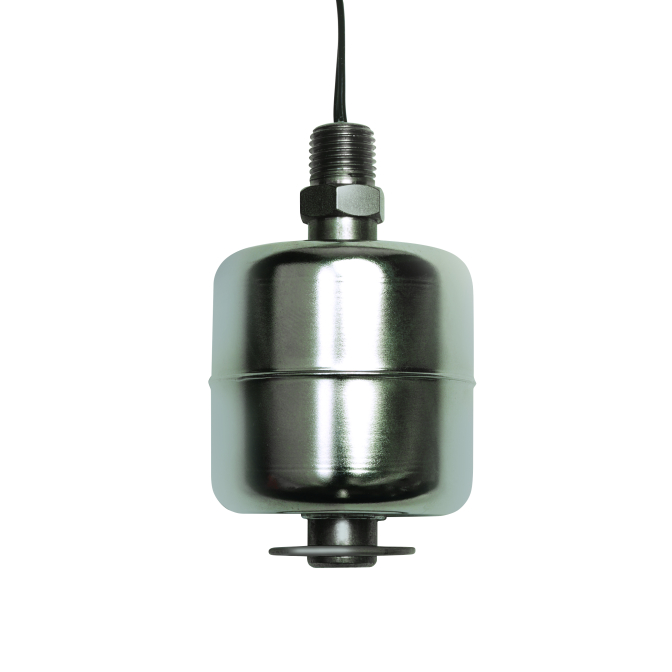

M5601 Single Point Level Switch
Heavy-duty 316 SS float switch, 100 W SPST output, with fast 1-day availability for reliable level control.
316 SS float and stem
Heavy-duty 100 W SPST reliability
Rapid-delivery, 1-day lead time
- Buy 10 for $105.45 each and save 5%
- Buy 25 for $99.90 each and save 10%
- Buy 100 for $94.35 each and save 15%
The M5601 Single Point Level Switch features durable 316 stainless-steel construction and a robust 100 W SPST switch for reliable level detection in demanding industrial and OEM environments. Capable of operating at pressures up to 200 PSI and responsive to liquid specific gravities down to 0.63, it ensures precise control in tanks, vessels, or process systems. With a fast 1-day lead time, this vertical float switch is designed for minimal downtime. MadisonSensor recommends requesting a quote to confirm pricing and specifications and stands ready to provide custom-engineered solutions.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 100 WATT SPST |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
