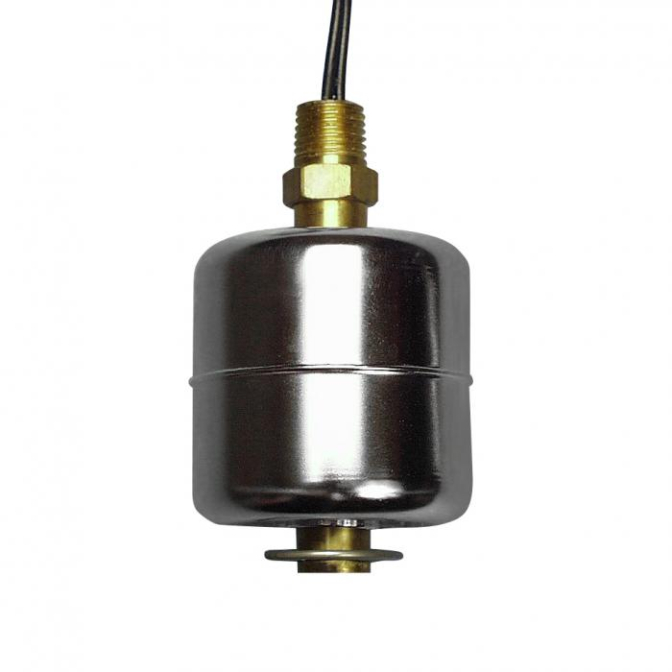

M5400-SPDT Full Size Float Switch
Durable full-size float switch with dual SPDT logic, high-temp and pressure capability.
Rugged 316 SS float with brass stem
Dual-logic SPDT for versatile control
High-pressure and temperature rated
- Buy 10 for $124.45 each and save 5%
- Buy 25 for $117.90 each and save 10%
- Buy 100 for $111.35 each and save 15%
The M5400-SPDT Full Size Float Switch is a sturdy vertical-mount sensor engineered for reliable liquid level detection in demanding industrial systems. Its stainless-steel float, brass stem, and SPDT logic make it ideal for applications requiring versatile control signals and durability. Rated for pressures up to 200 PSI and temperatures up to 392 °F, and certified with CE, CSA, cULus, and Prop 65 approvals, it ensures dependable operation in harsh conditions. MadisonSensor encourages requesting a quote to confirm pricing and specs, and offers custom solutions tailored to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | Brass |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 25 WATT SPDT |
| Electrical Ratings | 120V AC, 0.28A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, Prop 65 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
