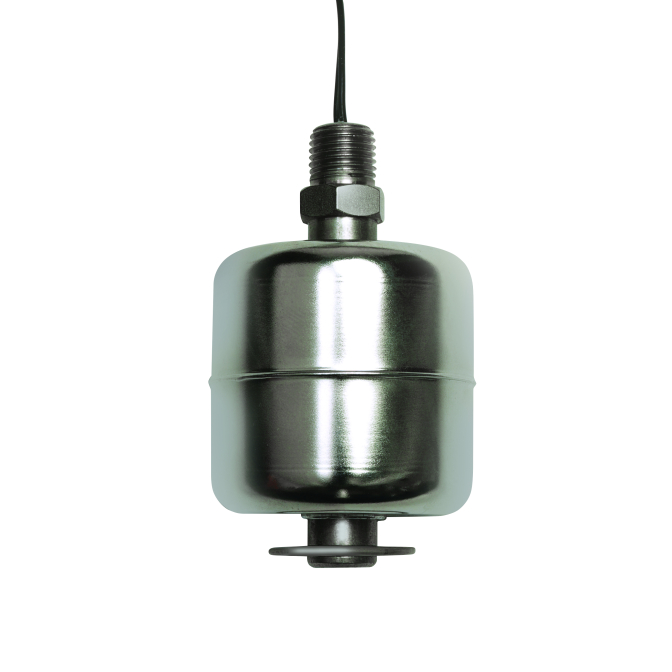

M5600 Single Point Level Switch (Normally Closed)
$95.00
SKU:
M5600
Lead Time1 Business Day
Sturdy 316 SS float switch with SPST NC logic and fast lead time for dependable level control.
Rugged 316 SS construction
Compact 60 W SPST reliability
Rated to 392 °F and 200 PSI
The M5600 Single Point Level Switch is a durable stainless-steel float sensor engineered for precise liquid level detection in industrial environments. Its robust build, rapid lead time, and normally-closed SPST logic make it ideal for system control and safety applications. Certified HazLoc capable with CE, CSA, and UL approvals, this switch offers dependable performance even under harsh conditions. MadisonSensor suggests requesting a quote to confirm current pricing and specifications, and is ready to deliver custom solutions tailored to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), NSF/ANSI 169, UL E150881 (Hazloc) |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
