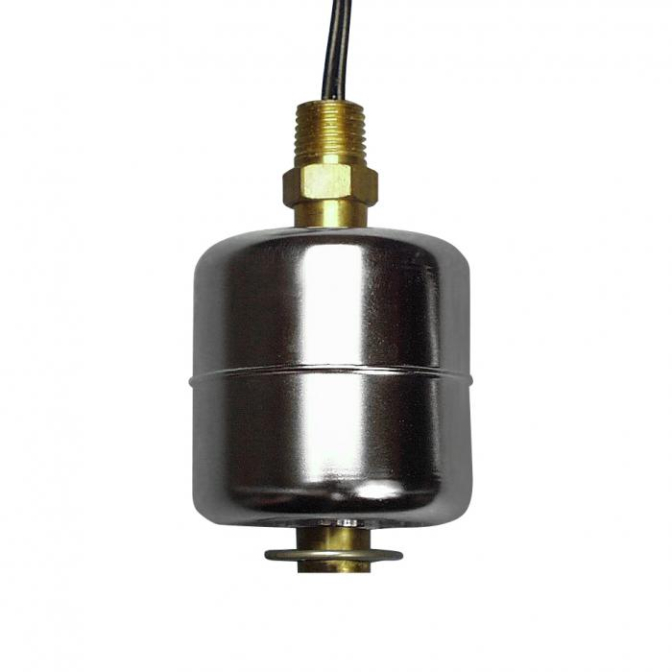

M5400 Full Size Float Switch
$108.00
SKU:
M5400
Lead Time5 Business Days
Durable full-size float switch with brass stem and high-capacity stainless-steel design for industrial level control.
Rugged 316 SS float with brass stem
Handles 392 °F and 200 PSI
High-capacity 60 W SPST rating
- Buy 10 for $102.60 each and save 5%
- Buy 25 for $97.20 each and save 10%
- Buy 100 for $91.80 each and save 15%
The M5400 Full Size Float Switch is a heavy-duty, vertical mount solution designed for demanding liquid level detection applications. With a stainless-steel float, brass stem, and 60 W SPST switch rating, it provides reliable control in tanks, reservoirs, and industrial systems. Rated up to 392 °F and 200 PSI, and approved by CE, UL, and CSA, this switch is built for performance and trust. MadisonSensor recommends requesting a quote to verify pricing and specifications, and can develop custom solutions for unique requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | Brass |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, Prop 65 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
