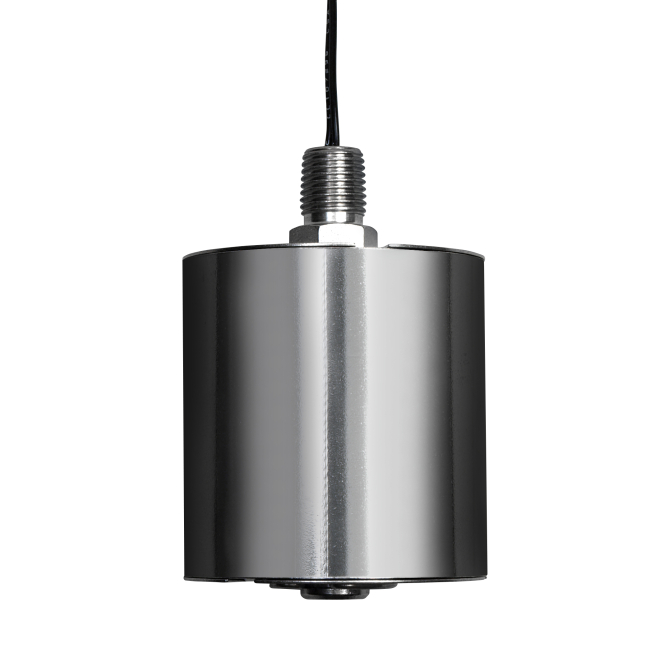

MS5600 Full Size Float Switch with Slosh Shield
Robust stainless-steel float switch with slosh shield for accurate level control in turbulent conditions.
Superior corrosion-resistant 316 stainless steel
Vertical ¼″ NPT mounting for space efficiency
Slosh-shielded 60 W SPST switch for turbulent environments
The MS5600 Full Size Float Switch with Slosh Shield is engineered for rugged reliability in demanding environments. Its heavy-duty 316 stainless steel construction resists corrosion while the slosh shield guards against erratic switching caused by agitation, boiling, or fluid surging. Rated for up to 392 °F and 200 psi, this switch is ideal for food processing, petrochemical, medical, and harsh industrial applications. MadisonSensor recommends requesting a quote for exact pricing and specifications, and offers custom configurations tailored to specialized needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 24 AWG, Teflon insulated |
| Float Diameter | 2.38" |
| Slosh Shield | Yes |
| Approvals | CE, CSA LR56150 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
