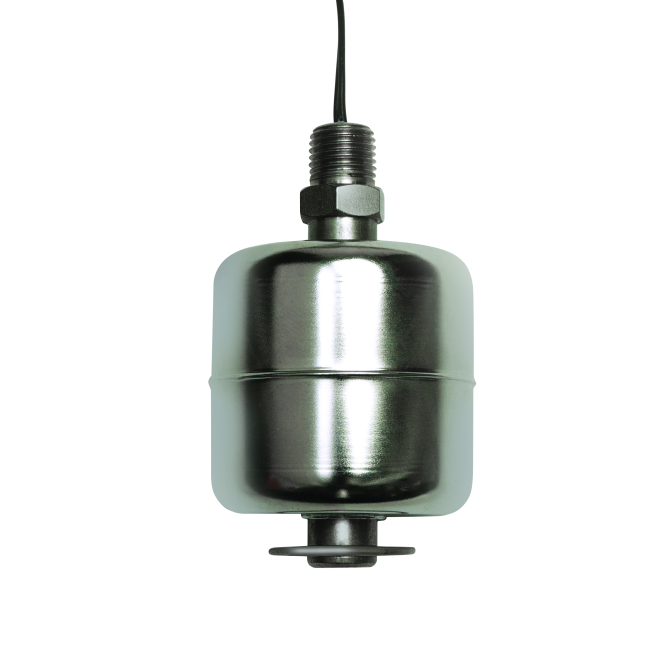

M5600-NO Single Point Level Switch (Normally Open)
Durable stainless-steel float switch with normally-open SPST logic for high-temp/pressure applications.
316 SS float and stem
Normally-open SPST logic
High-temp/pressure operational ratings
The M5600-NO Single Point Level Switch delivers reliable level detection with its vertical stainless-steel float and stem, built to operate at temperatures up to 392 °F and pressures up to 200 PSI. Its normally-open SPST logic is ideal for fail-safe monitoring in industrial and commercial fluid systems. Approved for hazardous locations (CSA, UL HazLoc) and NSF standards, this switch is engineered for tough environments. MadisonSensor recommends requesting a quote for accurate pricing confirmation and offers customizable solutions tailored to your specific needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), NSF/ANSI 169, UL E150881 (Hazloc) |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
