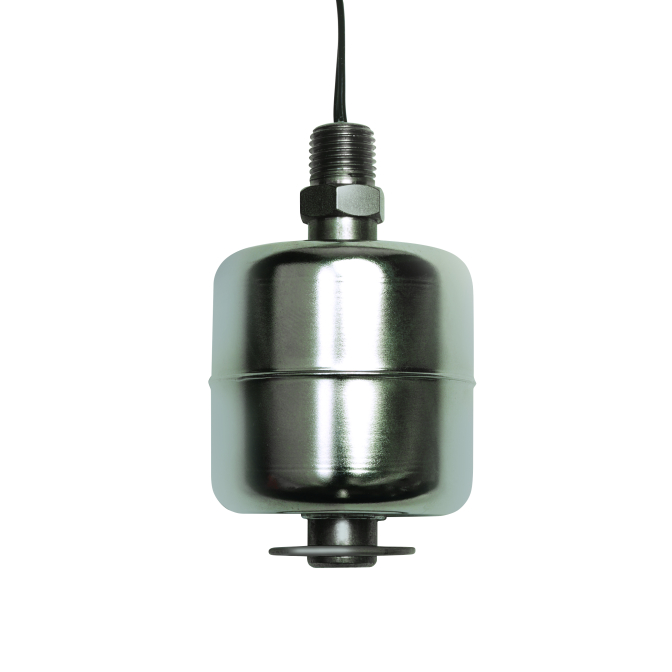

M5600-SPDT Full Size Float Switch
Full-size stainless-steel float switch with dual SPDT logic, high-temp/pressure durability.
Dual-logic SPDT switch control
Durable 316 SS vertical construction
Rated for 200 °F and 200 PSI
- Buy 10 for $112.10 each and save 5%
- Buy 25 for $106.20 each and save 10%
- Buy 100 for $100.30 each and save 15%
The M5600-SPDT Full Size Float Switch combines robust 316 stainless-steel construction with SPDT switch logic, making it ideal for precise level control in demanding industrial systems. Designed to withstand high temperatures up to 392 °F and pressures up to 200 PSI, it ensures reliable performance in harsh environments. With CE, CSA, cULus, and NSF certifications plus a 1-year warranty and a quick 5-business-day lead time, MadisonSensor encourages requesting a quote to confirm pricing and specifications and is ready to deliver customized solutions tailored to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 25 WATT SPDT |
| Electrical Ratings | 120V AC, 0.28A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 0.63 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.13" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
