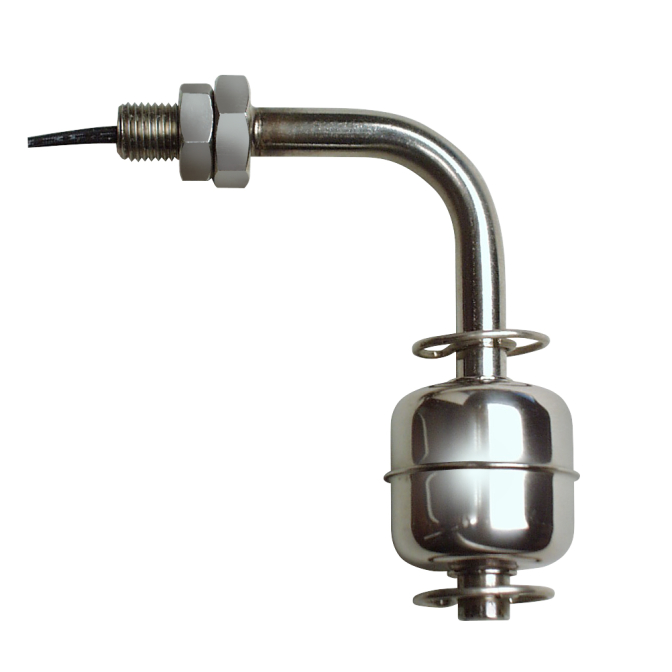

M5010-NO Side Mount Level Switch (Normally Open)
Stainless-steel side-mount float switch with normally-open SPST logic for high-temp/pressure applications.
Durable 316 SS construction
Side-mount normally-open SPST logic
High temp/pressure rated device
- Buy 10 for $93.10 each and save 5%
- Buy 25 for $88.20 each and save 10%
- Buy 100 for $83.30 each and save 15%
The M5010-NO Side Mount Level Switch is a rugged, stainless-steel float sensor offering reliable liquid level detection in horizontal installations. It’s perfect for demanding industrial environments—such as chemical processing, HVAC, and fluid handling systems—where temperature up to 200 °C (392 °F) and pressure up to 300 PSI demand durable performance. The normally-open SPST logic ensures safe signal output, and multiple certifications (CE, CSA, cULus, NSF) ensure quality and compliance. MadisonSensor recommends requesting a quote for precise pricing and spec confirmation, and offers custom solutions tailored to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 3/8-24 UNF |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.18" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
