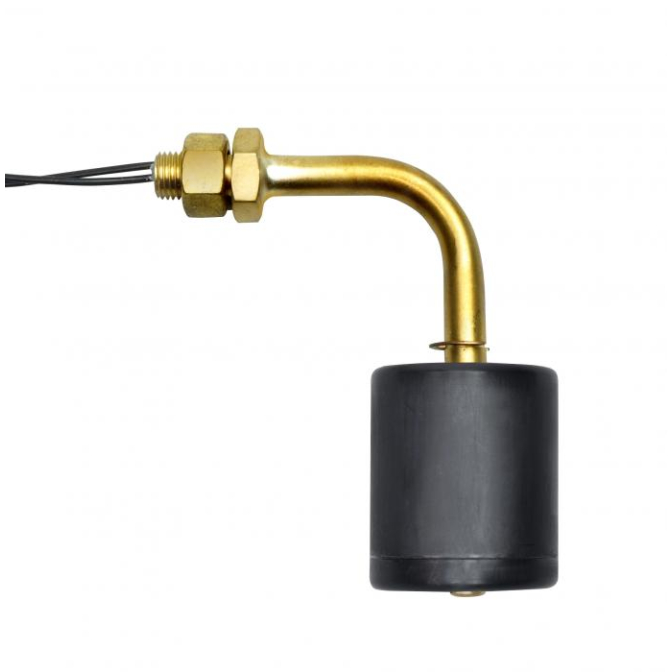

MS4010 90° Side Mount Float Switch with Slosh Shield
$113.00
SKU:
MS4010
Lead Time5 Business Days
Slosh-shielded side-mount float switch built for reliable level sensing in turbulent conditions.
High-purity Buna-N float with brass stem
Compact 3/8-24 UNF horizontal mounting
Slosh-shielded 30 W SPST switch
The MS4010 90° Side Mount Float Switch with Slosh Shield offers rugged, horizontally oriented level detection for harsh or turbulent environments. Designed with a Buna-N float and brass stem, it withstands aggressive agitation up to 221 °F and 100 psi. Ideal for fuel tanks, hydraulic systems, and mobile applications, this switch ensures reliable performance even under surge or boiling conditions. MadisonSensor prefers quote requests for verifying price and specs and offers tailored, custom-engineered solutions to meet specific OEM needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 3/8-24 UNF |
| Float Material | Buna-N |
| Stem Material | Brass |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 24 AWG, Teflon insulated |
| Slosh Shield | Yes |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
