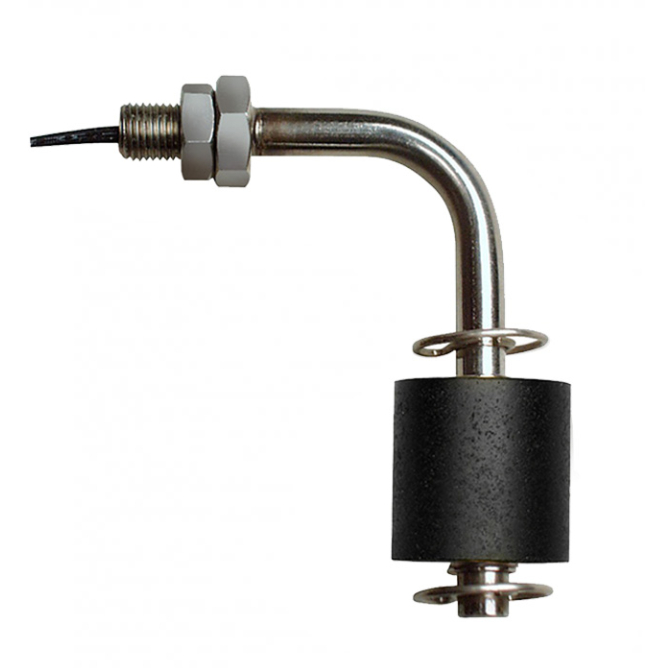

M4410 Side Mount Level Switch
$92.00
SKU:
M4410
Lead Time1 Business Day
Miniature side-mount float switch balancing durability and quick deployment.
316 SS stem resists harsh chemicals
Compact horizontal side-mount design
Quick 1-day lead time
The M4410 Side Mount Level Switch features a durable 316 stainless steel stem paired with a Buna-N float, designed for compact, horizontal installations and reliable level detection up to 150 PSI. Ideal for OEM applications such as medical, food processing, and heating/cooling systems, it offers dependable normally closed SPST switching with fast one-day delivery and a one-year warranty. MadisonSensor prefers quote requests for pricing or specification confirmation and provides custom solutions tailored to exact industry needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 3/8-24 UNF |
| Float Material | Buna-N |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, Prop 65 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
