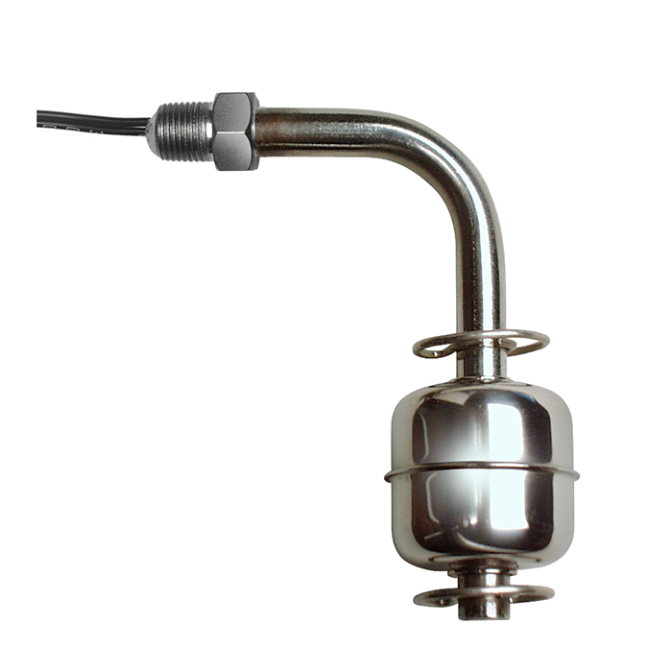

M5010-18 Side Mount Level Switch
Durable side-mount stainless-steel float switch with normally-closed SPST logic and high-temperature/pressure ratings.
Compact stainless-steel side-mount design
Reliable normally-closed SPST switch logic
High temp/pressure rated (392 °F, 300 PSI)
- Buy 10 for $93.10 each and save 5%
- Buy 25 for $88.20 each and save 10%
- Buy 100 for $83.30 each and save 15%
The M5010-18 is a rugged, stainless-steel float switch engineered for reliable side-mount liquid level detection in industrial and OEM applications. It’s ideal for use in heating, cooling, chemical, and food-processing systems requiring precise control under harsh conditions. The normally-closed SPST configuration ensures dependable operation, and NSF, CE, CSA, and cULus approvals reinforce its credibility. MadisonSensor prefers quote requests for exact pricing and spec validation—and offers customized solutions when needed.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/8" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.91 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1.18" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
