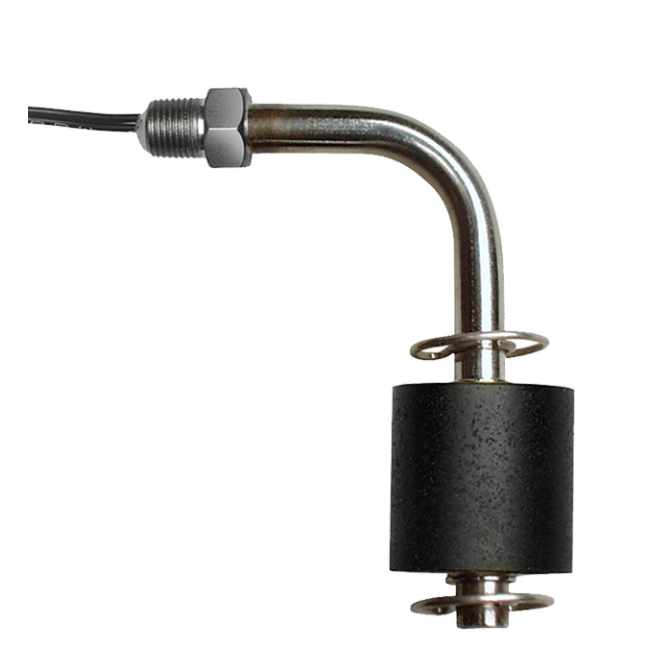

M4410-18 Side Mount Level Switch
Compact, durable side-mount float switch designed for precise level control.
316 SS stem for corrosion resistance
Compact 1/8″ NPT side-mount design
Normally-closed SPST for fluid-level control
The M4410-18 Side Mount Level Switch provides reliable horizontal-level sensing with a compact 1/8″ NPT side-mount and corrosion-resistant 316 stainless steel stem paired with a Buna-N float. Its normally closed SPST logic ensures dependable on/off control in tight installations, rated for up to 150 PSI. Approved for CE compliance and Prop 65, and backed by a one-year warranty with a rapid one-day lead time, it’s ready for demanding applications. MadisonSensor prefers quote requests for price or specification confirmation and offers custom solutions to meet exact industrial requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Buna-N |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 0.56 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, Prop 65 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
