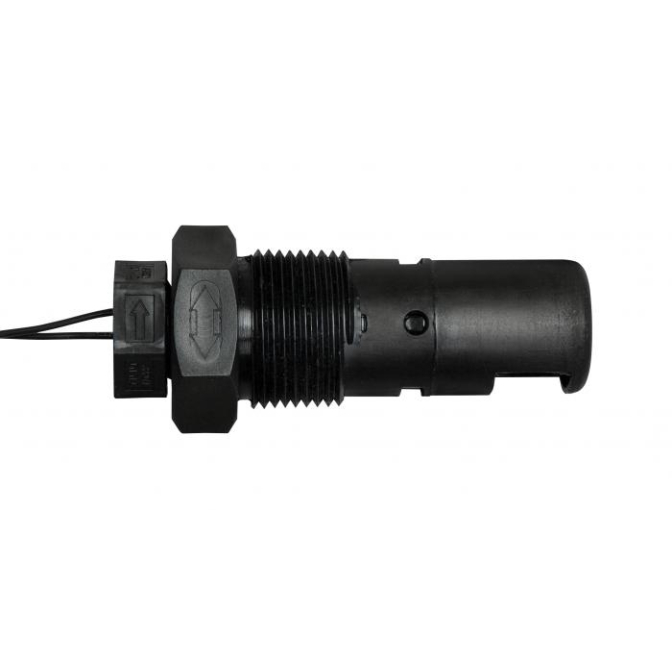

M7755 Side Mount Float Switch
$109.00
SKU:
M7755
Lead Time5 Business Days
Reliable PBT side-mount float switch with slosh shield and selectable logic, suitable for harsh liquids.
PBT construction with slosh shield
Selectable SPST logic (NO/NC)
Rated for 266 °F and 100 PSI
- Buy 10 for $103.55 each and save 5%
- Buy 25 for $98.10 each and save 10%
- Buy 100 for $92.65 each and save 15%
The M7755 Side Mount Float Switch is a rugged, PBT-constructed sensor built for reliable liquid level detection in agitated or boiling environments. Equipped with a slosh shield and selectable logic options, it ensures stable operation and ease of configuration. Rated to 266 °F and 100 PSI with CE, CSA, and UL certifications, and backed by a one-year warranty and a 5-day lead time, MadisonSensor recommends requesting a quote for precise pricing and specifications—and can provide custom solutions tailored to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | PBT |
| Stem Material | PBT |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 130 |
| Temperature (Max-Fahrenheit) | 266 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.6" |
| Slosh Shield | Yes |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
