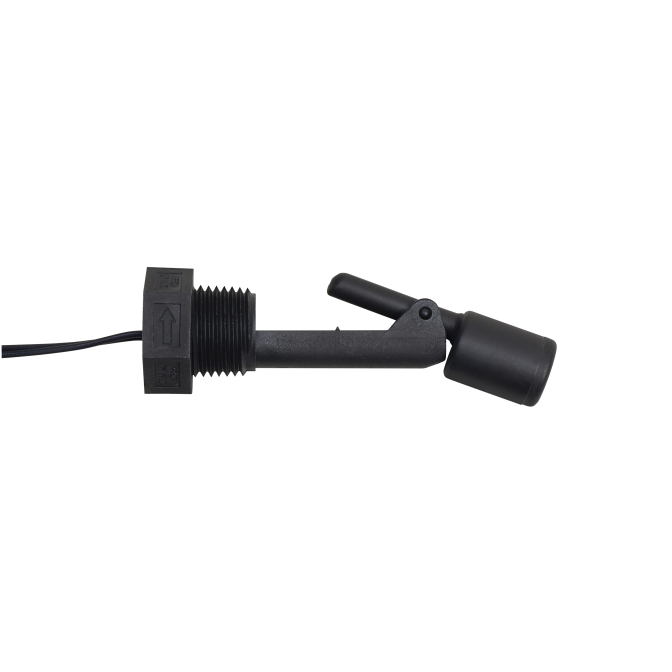

M7750 Side Mount Level Switch
Durable PBT side-mount float switch with reversible logic, rated to 100 PSI/266 °F, and quick availability.
Rugged PBT float and stem
Reversible SPST logic (NO/NC)
Rated up to 266 °F and 100 PSI
The M7750 Side Mount Level Switch is a dependable PBT-based float sensor designed for horizontal installation. It offers flexible logic configuration—selectable between normally open or closed operation—via an SPST switch rated at 30 W. Engineered for petroleum and hydraulic use, it withstands temperatures up to 266 °F (130 °C) and pressures up to 100 PSI. Certified with CE, CSA, and UL approvals, it comes backed by a 1-year warranty and a 1-day lead time. MadisonSensor recommends requesting a quote for current pricing and spec validation and stands by with tailored solutions upon request.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | PBT |
| Stem Material | PBT |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 130 |
| Temperature (Max-Fahrenheit) | 266 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
