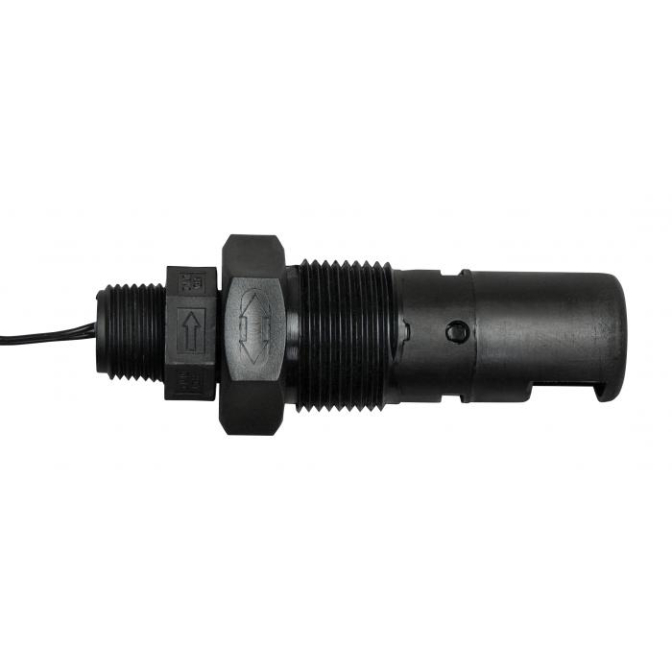

M7705 Side Mount Float Switch
PBT side-mount float switch with slosh shield—reversible logic, high-temp/pressure rating, ready in 5 days.
PBT construction with slosh shield
Reversible SPST logic (NO / NC)
Up to 266 °F and 100 PSI rated
The M7705 Side Mount Float Switch combines robust PBT construction with a slosh shield to deliver precise level detection in demanding, agitated environments. Its reversible SPST logic allows for either normally open or closed control configurations. Rated for challenging conditions up to 266 °F and 100 PSI and backed by CE, CSA, UL, and Florida DEP approvals, this switch offers reliable performance in fuel processing, lubrication recovery, and boiling fluid applications. MadisonSensor recommends requesting a quote to verify pricing and specs, and can provide custom-engineered solutions to suit your exact system needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | PBT |
| Stem Material | PBT |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 130 |
| Temperature (Max-Fahrenheit) | 266 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.6" |
| Slosh Shield | Yes |
| Approvals | CE, CSA LR56150, cULus E54633, Florida DEP EQ682 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
