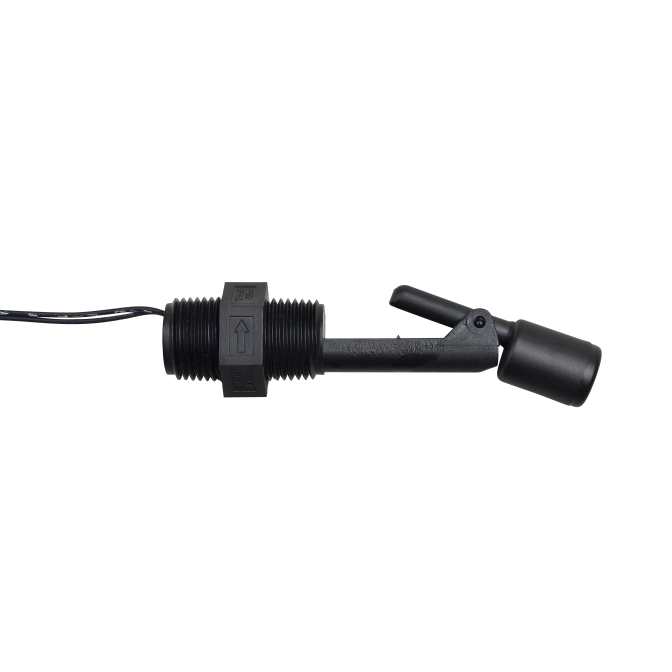

M7700 Side Mount Level Switch
Sturdy PBT side-mounted float switch, reversible SPST logic, 266 °F/100 PSI rated, and readily available.
PBT float & stem (plastic construction)
Reversible SPST logic (NO/NC)
Durable up to 266 °F and 100 PSI
- Buy 10 for $29.45 each and save 5%
- Buy 25 for $27.90 each and save 10%
- Buy 100 for $26.35 each and save 15%
The M7700 Side Mount Level Switch is a dependable, plastic float sensor crafted for negative vertical installations where space is limited. Built from rugged PBT, it withstands petroleum-based environments up to 266 °F and features a reversible SPST logic, allowing for normally open or closed configurations. Certified for safety with CE, CSA, UL, and Florida DEP approvals, and backed by a 1-Year warranty with fast 1-day lead times, MadisonSensor encourages requesting a quote for precise pricing and spec validation. Custom solutions are also available to fit unique needs.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | PBT |
| Stem Material | PBT |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 130 |
| Temperature (Max-Fahrenheit) | 266 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, Florida DEP EQ682 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
