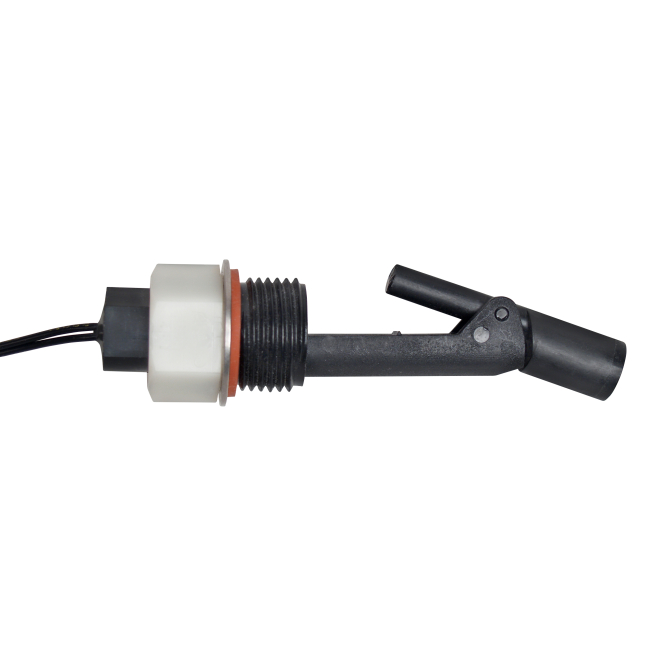

M7740 Side Mount Level Switch
$41.00
SKU:
M7740
Lead Time1 Business Day
Rugged PBT side-mounted float switch with configurable SPST logic, high-temp rating, and fast availability.
Durable PBT float & stem
Selectable SPST logic (NO/NC)
Rated to 266 °F and 100 PSI
The M7740 Side Mount Level Switch is a compact and reliable sensor featuring a chemically resistant PBT float and stem, ideal for use in horizontal installations. Its SPST logic can be configured as normally open or closed, offering flexible integration into control systems. Rated for up to 266 °F (130 °C) and 100 PSI, and carrying CE, CSA, and UL approvals, this switch is perfect for non-aqueous or petroleum-based applications. MadisonSensor recommends requesting a quote for accurate pricing and specifications, and can provide custom-engineered solutions upon request.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 7/8-14 |
| Float Material | PBT |
| Stem Material | PBT |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240 VAC, 0.14A; 120 VAC, 0.28A; 120 VDC, 0.07A; 24 VDC, 0.28A |
| Temperature (Max-Celsius) | 130 |
| Temperature (Max-Fahrenheit) | 266 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.6" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
