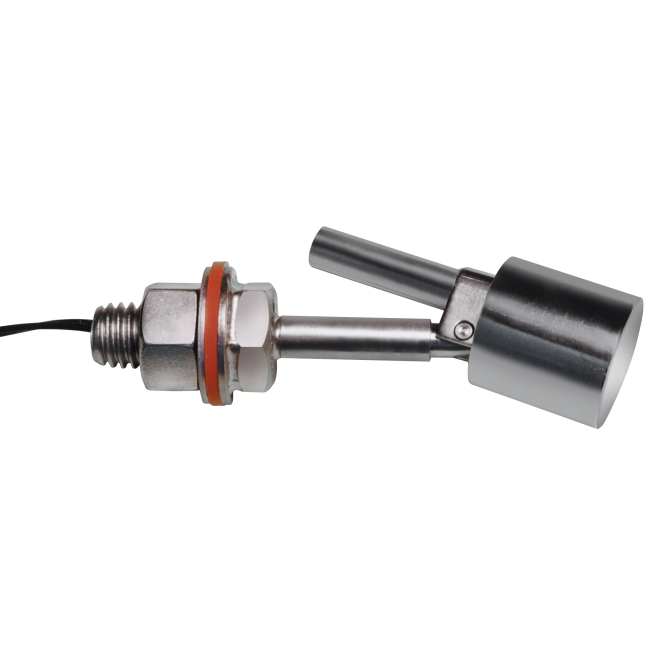

M5970 Side Mounted Level Switch
Durable side-mounted 316 SS float switch with SPST logic, high-temperature and pressure capability, and fast availability.
Compact 316 SS side-mounted design
Dual logic SPDT-style adaptability
High-temp (392 °F) and pressure (100 PSI) rated
- Buy 10 for $171.95 each and save 5%
- Buy 25 for $162.90 each and save 10%
- Buy 100 for $153.85 each and save 15%
The M5970 Side Mounted Level Switch offers reliable horizontal liquid level detection using a compact, corrosion-resistant 316 stainless-steel float and stem. Its flexible logic supports both normally open and closed configurations via an SPST switch rated for 30 W. Engineered for durability, the unit withstands temperatures up to 392 °F and pressures up to 100 PSI. With industry-standard approvals—CE, UL, NSF—plus fast 1-day availability and a 1-year warranty, MadisonSensor recommends requesting a quote to secure accurate pricing and specifications and can help tailor a solution to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2-13 UNC |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.88 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 0.75" |
| Slosh Shield | No |
| Approvals | CE, cULus E54633, NSF/ANSI/CAN 372 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
