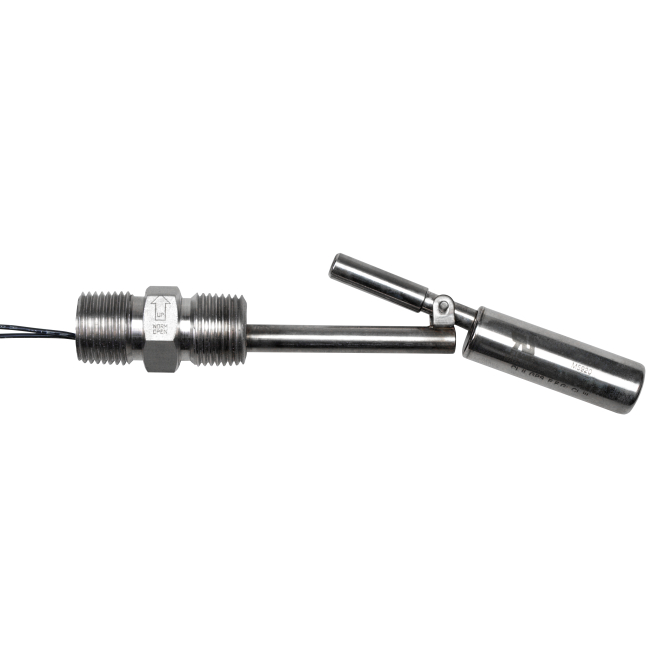

M5920 Side Mounted Level Switch
Side-mounted 316 SS float switch with selectable logic, high-temp/pressure rating, and fast availability.
Durable 316 SS horizontal construction
User-selectable SPST logic (NO/NC)
Rapid 1-day lead time, HazLoc approved
- Buy 10 for $193.80 each and save 5%
- Buy 25 for $183.60 each and save 10%
- Buy 100 for $173.40 each and save 15%
The M5920 Side Mounted Level Switch is a robust, 316 stainless-steel float sensor engineered for horizontal installations. Its versatile SPST logic can be set to either normally open or closed to suit diverse monitoring needs. Designed to deliver reliable performance in demanding conditions—up to 392 °F and 300 PSI—and certified for hazardous environments (CE, UL, CSA, NSF), this switch is ideal for chemical, food processing, and industrial applications. MadisonSensor recommends requesting a quote to verify pricing and specifications, and is ready to support custom solutions tailored to your requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), NSF/ANSI 169, UL E150881 (Hazloc) |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
