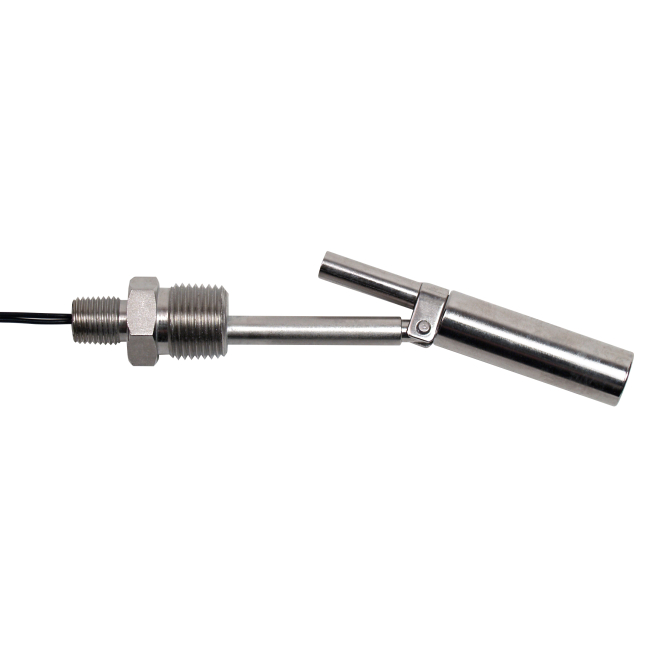

M5910 Side Mounted Level Switch
Durable side-mounted 316 SS float switch with SPDT logic versatility and rapid availability.
Side-mounted 316 SS build for corrosion resistance
SPDT-like logic (NO/NC) in a single SPST switch
Fast 1-day lead time, HazLoc tolerance
- Buy 10 for $193.80 each and save 5%
- Buy 25 for $183.60 each and save 10%
- Buy 100 for $173.40 each and save 15%
The M5910 Side Mounted Level Switch is a rugged stainless-steel float sensor engineered for precise horizontal installation. Thanks to its SPDT-like flexibility in a compact SPST switch, it can adapt to different logic requirements. It operates under demanding conditions—up to 392 °F and 300 PSI—and is certified for hazardous environments with CE, CSA, UL, and NSF approvals. With a swift 1-day lead time and a 1-year warranty, MadisonSensor recommends requesting a quote for final pricing and specs, and offers custom configurations when needed.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1/2" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), NSF/ANSI 169, UL E150881 (Hazloc) |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
