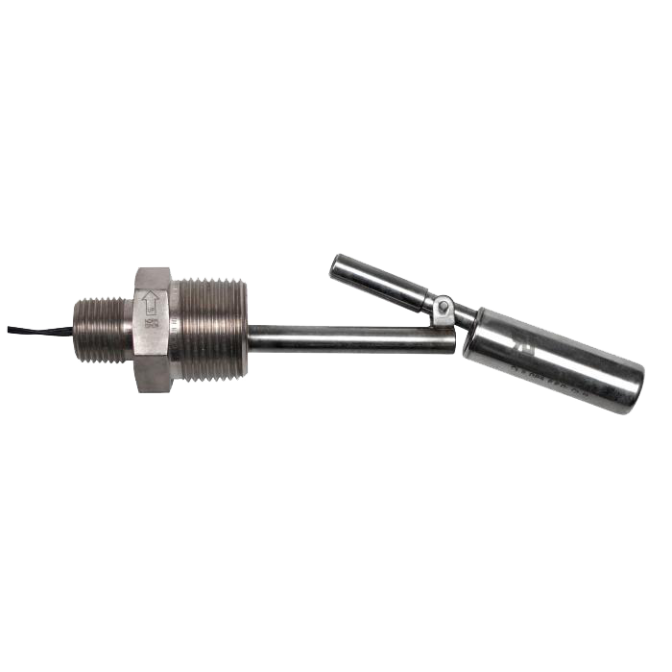

M5900 Side Mounted Level Switch
Durable 316 SS side-mounted float switch with SPDT logic, high-temp/pressure capability, and fast availability.
Heavy-duty 316 SS side-mounted design
SPDT logic (NO/NC) for versatile control
Fast 1-day lead time, HazLoc certified
- Buy 10 for $211.85 each and save 5%
- Buy 25 for $200.70 each and save 10%
- Buy 100 for $189.55 each and save 15%
The M5900 Side Mounted Level Switch is a robust horizontal float sensor featuring a durable 316 stainless-steel construction, suitable for demanding industrial environments. Its SPDT switch logic allows for both normally open and normally closed configurations depending on your control logic needs. Certified for hazardous locations and approved by CE, CSA, UL, and NSF standards, this switch handles temperatures up to 392 °F and pressures up to 300 PSI. MadisonSensor recommends requesting a quote for the most accurate pricing and specifications and can supply custom solutions to match your exact application requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Horizontal |
| Mounting Type & Size | 1" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 21 |
| Maximum Pressure (PSI) | 300 |
| Minimum Media SG | 0.75 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), NSF/ANSI 169, UL E150881 (Hazloc) |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
