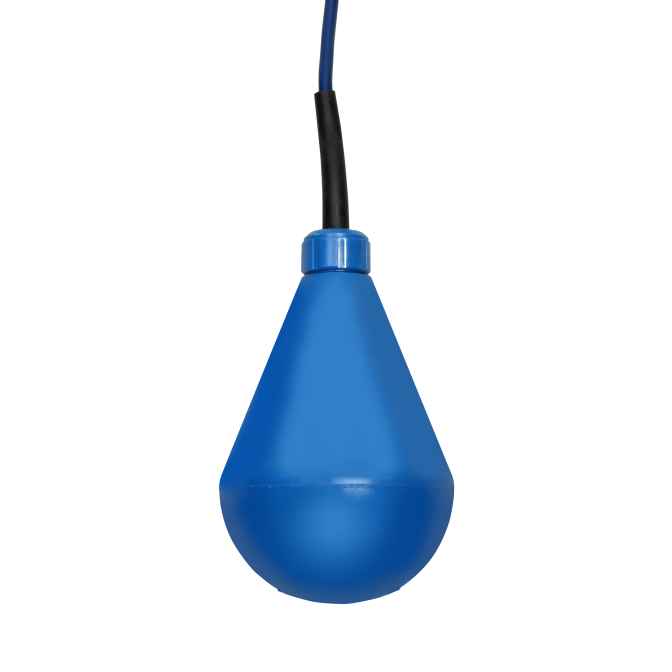

M4549 Tilt Float Single Point Level Switch (49.2' Cable)
Flexible, high-current tilt-float switch for extended cable applications.
Extended 49.2' cable for flexible placement
Durable polypropylene tilt float design
High-current SPDT switch (16 A)
The M4549 Tilt Float Single Point Level Switch features an extended 49.2-foot PVC-jacketed cable and reliable tilt-action float technology housed in polypropylene, offering exceptional flexibility in open tank and sump installations. With a high-current SPDT switch rated for 16 A, it handles heavy-duty control tasks effectively. Designed for low-pressure environments up to 14.5 PSI and backed by CE certification, plus a one-year warranty, it delivers robust performance with a one-day lead time. MadisonSensor prefers quote requests for price or specification confirmation and provides custom solutions fit to your exact operational requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Tilt |
| Mounting Type & Size | Suspendable Cable |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 16A at 250V AC (8A switching) |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 70 |
| Temperature (Max-Fahrenheit) | 158 |
| Maximum Pressure (BAR) | 1 |
| Maximum Pressure (PSI) | 14.5 |
| Minimum Media SG | 0.90 |
| Electrical Termination | 49.2', PVC jacketed cable |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
