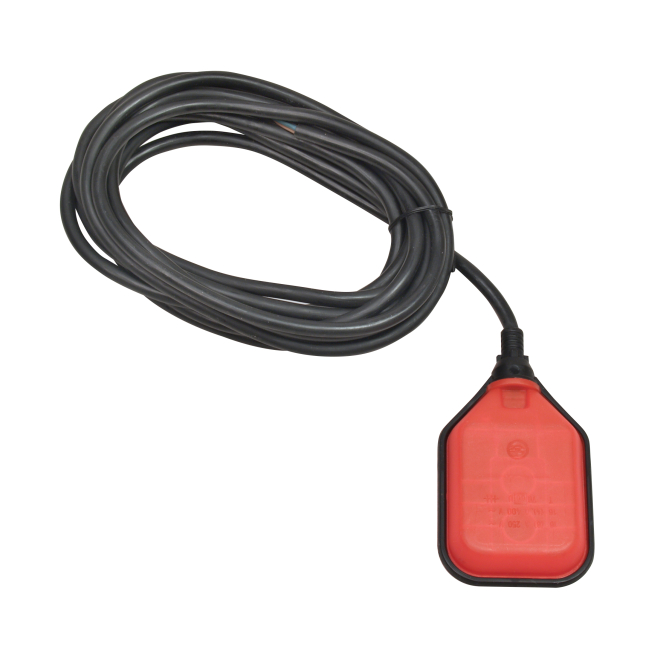

M4189 Tilt Float Single Point Level Switch (6.6' Cable)
$51.00
SKU:
M4189
Lead Time1 Business Day
Tilt float switch for dependable level control in open vessels and sumps.
Polypropylene tilt float resists harsh media
SPDT switch changes with 30–45° tilt motion
- Suspendable cable allows flexible placement
- Buy 10 for $48.45 each and save 5%
- Buy 25 for $45.90 each and save 10%
- Buy 100 for $43.35 each and save 15%
The M4189 Tilt Float Single Point Level Switch delivers highly reliable liquid level detection in open vessels, sumps, and ponds. As the polypropylene float tilts (approximately 30°–45°), an internal SPDT switch changes state—perfect for pump control, alarms, or valve actuation. With CE certification and a durable PVC-jacketed cable, it offers robust performance. MadisonSensor encourages requesting a quote to confirm pricing and specifications and stands ready to provide custom-engineered solutions tailored to your application.
| Sensor Type | Float |
|---|---|
| Orientation | Tilt |
| Mounting Type & Size | Suspendable Cable |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 16A at 250V AC (8A switching) |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 70 |
| Temperature (Max-Fahrenheit) | 158 |
| Maximum Pressure (BAR) | 1 |
| Maximum Pressure (PSI) | 14.5 |
| Minimum Media SG | 0.90 |
| Electrical Termination | 6.6' PVC jacketed cable |
| Float Diameter | 3.3" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
