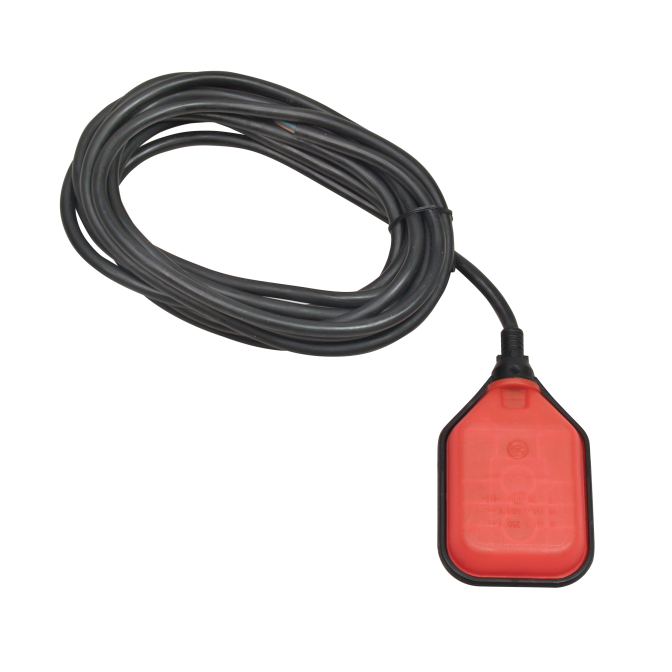

M4189-1003 Tilt Float Single Point Level Switch (49.2' Cable)
Tilt float level switch with long cable—ideal for flexible, reliable liquid detection.
- Long 49 ft cable—flexible placement
Tilt-actuated SPDT switch for reliable detection
Durable polypropylene resists chemicals
The M4189-1003 Tilt Float Single Point Level Switch offers dependable liquid level monitoring in open vessels, sumps, and ponds. Featuring a durable polypropylene construction and a tilt-angle SPDT switch, it reliably changes state as the float tilts—ideal for pump control, alarm systems, and valve actuation. With an extended 49-foot PVC-jacketed cable for flexible placement, this sensor delivers robust performance. MadisonSensor recommends requesting a quote to confirm pricing and specifications, and can provide custom-engineered solutions tailored to your application's needs.
| Sensor Type | Float |
|---|---|
| Orientation | Tilt |
| Mounting Type & Size | Suspendable Cable |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 16A at 250V AC (8A switching) |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 70 |
| Temperature (Max-Fahrenheit) | 158 |
| Maximum Pressure (BAR) | 1 |
| Maximum Pressure (PSI) | 14.5 |
| Minimum Media SG | 0.90 |
| Electrical Termination | 49.2' PVC jacketed cable |
| Float Diameter | 3.3" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
