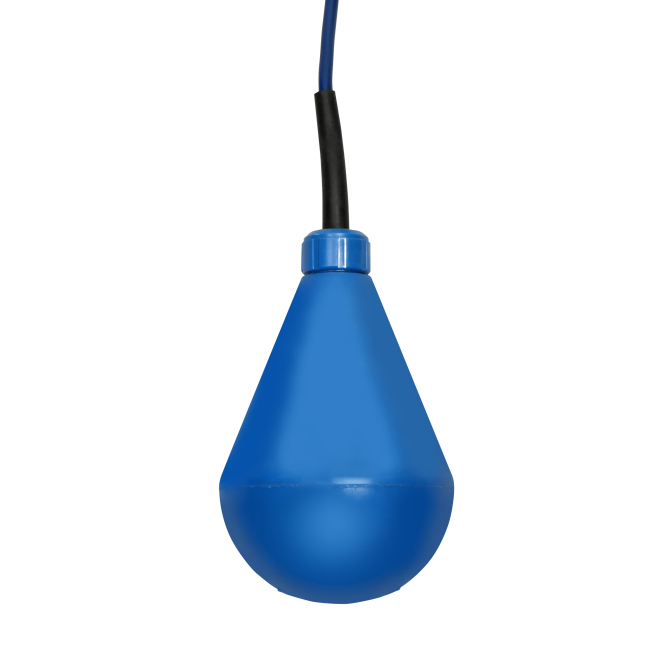

M4548 Tilt Float Single Point Level Switch (6.6' Cable)
Robust tilt-float switch offering high-current level detection via cable suspension.
Tilt-action float for compact sensing
Polypropylene housing resists corrosion
High-current SPDT switching (16 A)
The M4548 Tilt Float Single Point Level Switch delivers reliable level sensing in vertical applications through tilt-based float technology suspended on a durable 6.6′ PVC cable. Its polypropylene construction offers chemical and corrosion resistance, while the SPDT logic handles high currents up to 16 A for demanding control tasks. Rated for low-pressure environments (14.5 PSI) and approved under CE standards, this switch is backed by a one-day lead time and a one-year warranty—making it ideal for tanks, sumps, and open systems. MadisonSensor prefers quote requests for specification or price verification and offers custom solutions tailored to your exact needs.
| Sensor Type | Float |
|---|---|
| Orientation | Tilt |
| Mounting Type & Size | Suspendable Cable |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 16A at 250V AC (8A switching) |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 70 |
| Temperature (Max-Fahrenheit) | 158 |
| Maximum Pressure (BAR) | 1 |
| Maximum Pressure (PSI) | 14.5 |
| Minimum Media SG | 0.90 |
| Electrical Termination | 6.6' PVC jacketed cable |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
