M8000-NO Single Point Level Switch (Normally Open)
$27.00
SKU:
M8000-NO
Lead Time1 Business Day
Mini polypropylene float switch, normally open logic, rated to 221 °F/100 PSI with next-day availability.
Compact polypropylene float & stem
Normally-open SPST logic—fail-safe open state
Rated for up to 221 °F and 100 PSI
- Buy 50 for $25.65 each and save 5%
- Buy 100 for $24.30 each and save 10%
- Buy 250 for $22.95 each and save 15%

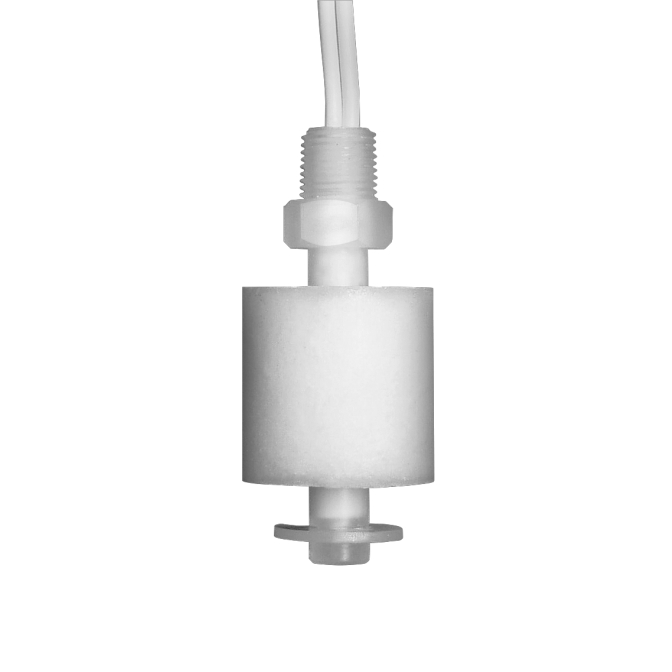

The M8000‑NO Single Point Level Switch features a dependable polypropylene float and stem in a compact vertical design. With normally‑open SPST logic, it allows for fail-safe operation in many control systems. Designed for use in acidic, alkaline, or food-service environments, it supports temperatures up to 221 °F (105 °C) and pressures up to 100 PSI. Fully certified to CE, CSA, cULus, and NSF standards, this switch comes with a 1-year warranty and a fast 1-day lead time. MadisonSensor recommends requesting a quote for current pricing and detailed specifications—and offers customized solutions on demand.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 1.00 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
