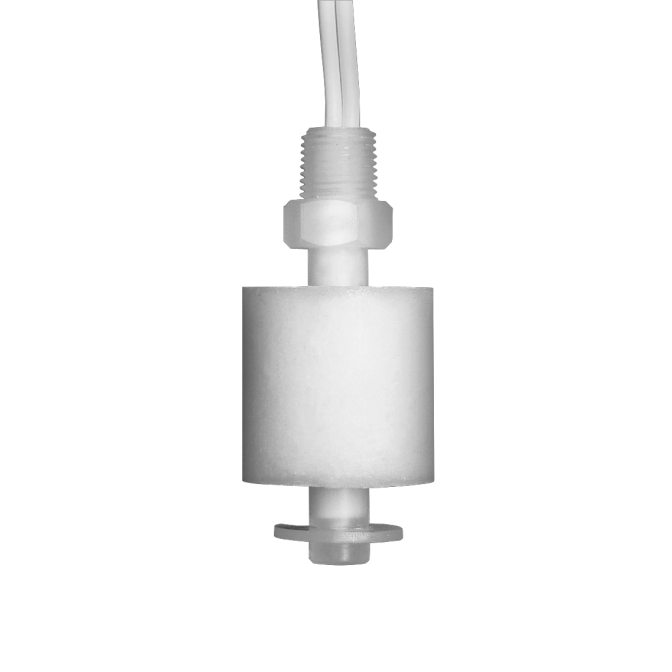

M8000 Single Point Level Switch (Normally Closed)
Compact polypropylene float switch (SPST NC), rated to 221 °F / 100 PSI—reliable and in stock.
FDA-approved polypropylene construction
Normally-closed SPST operation, 30 W rating
Compact 1″ float, vertical mount, fast in-stock delivery
- Buy 50 for $25.65 each and save 5%
- Buy 100 for $24.30 each and save 10%
- Buy 250 for $22.95 each and save 15%
The M8000 Single Point Level Switch features a FDA-approved polypropylene float and stem, delivering reliable normally-closed SPST performance for vertical mount applications. Rated for temperatures up to 221 °F and pressure up to 100 PSI, it’s an ideal solution for acidic, alkaline, or low-temperature food environments. With CE, CSA, UL, and NSF approvals and 1-day availability, MadisonSensor encourages requesting a quote to verify current pricing and specs and can offer custom configurations to fit your application.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 1.00 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
