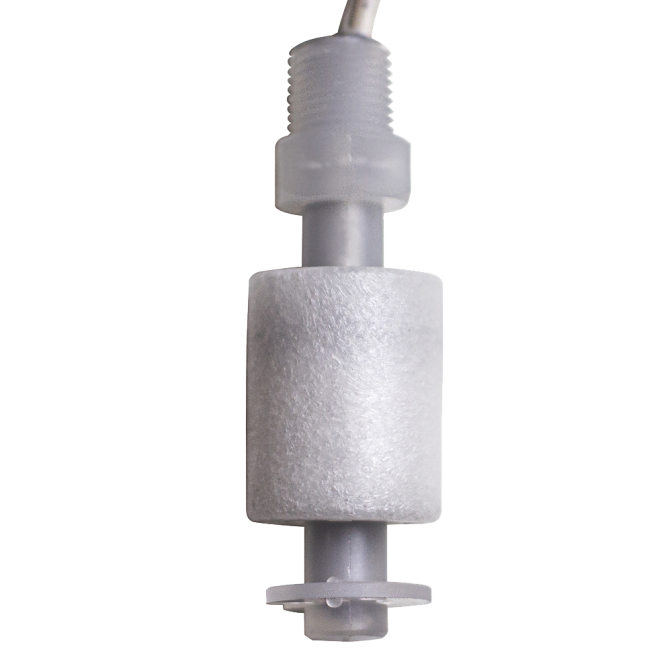

M8000-75 Single Point Level Switch
$37.00
SKU:
M8000-75
Lead Time1 Business Day
Mini polypropylene float switch (¾ in), field-configurable SPST logic, rated to 221 °F/150 PSI, and in stock.
Miniature ¾‑inch polypropylene float
SPST switch, field‑changeable logic (NO/NC)
Compact ⅛″ NPT vertical design, fast availability
The M8000‑75 Single Point Level Switch is a compact, polypropylene float sensor engineered for space-constrained applications. Its hermetically sealed design and ¾‑inch float offer reliable level detection with a 30 W SPST switch that can easily be changed between normally open and normally closed configurations. Rated to 221 °F (105 °C) and 150 PSI and carrying CE, CSA, UL, and NSF approvals, it’s ideal for food service steamers, acidic/alkaline liquids, and OEM installations. With a 1-day lead time, MadisonSensor encourages requesting a quote for accurate specifications and pricing and stands ready with custom solutions on demand.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 11 |
| Maximum Pressure (PSI) | 150 |
| Minimum Media SG | 1.13 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 0.75" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
