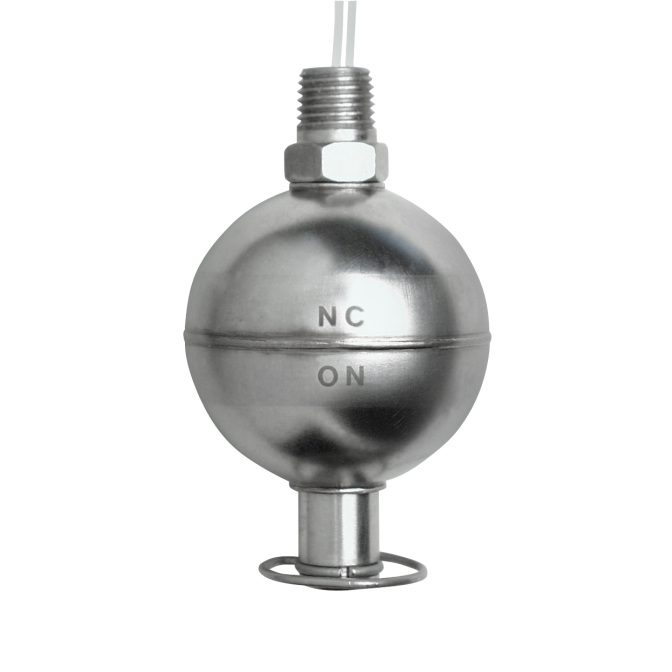

M5600-PR Single Point Level Switch
Durable 100 W SPST float switch, high-pressure, high-temperature capable, with fast delivery.
High-power 100 W SPST reed switch
Rugged 316 SS float and stem
High pressure (500 PSI) and temp (392 °F) rated
- Buy 10 for $118.75 each and save 5%
- Buy 25 for $112.50 each and save 10%
- Buy 100 for $106.25 each and save 15%
The M5600-PR Single Point Level Switch offers a powerful, high-capacity 100 W SPST reed switch enclosed in a robust 316 stainless-steel float and stem—ideal for heavy-duty liquid level control applications. It’s designed to deliver reliable performance under extreme conditions up to 500 PSI and 392 °F. With fast one-day lead time, CE and NSF/ANSI 169 approvals, and low GVW, this switch supports demanding environments with minimal downtime. MadisonSensor recommends requesting a quote to verify pricing and specifications and stands ready to provide customized solutions tailored to your needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 100 WATT SPST |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 1.00A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 34 |
| Maximum Pressure (PSI) | 500 |
| Minimum Media SG | 0.88 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.05" |
| Slosh Shield | No |
| Approvals | CE, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
