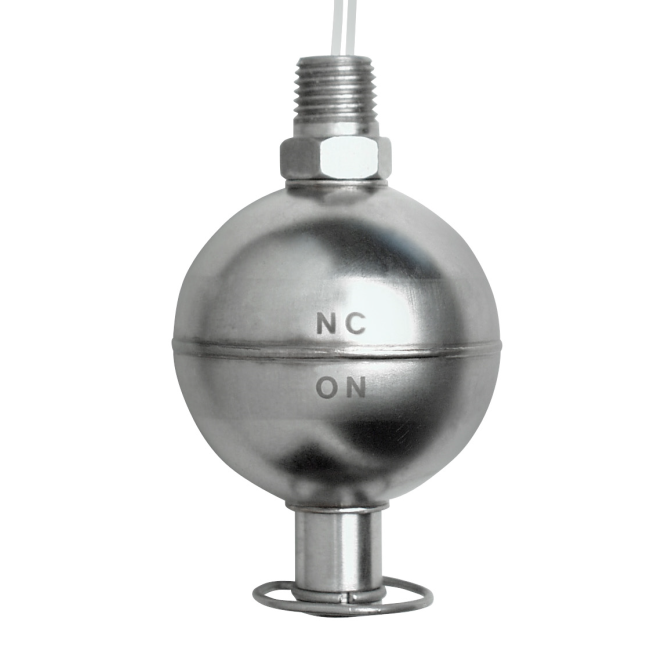

M5600-200/90 Full Size Float Switch (Interface Float)
Interface float switch with 316 SS durability, NC SPST output, and high-pressure/temperature capability.
Durable 316 SS full-size float
Normally-closed SPST operation
High pressure and temp: 200 PSI, 392 °F
- Buy 10 for $242.25 each and save 5%
- Buy 25 for $229.50 each and save 10%
- Buy 100 for $216.75 each and save 15%
The M5600-200/90 Full Size Float Switch is a robust, stainless-steel interface float sensor designed for precision liquid level detection in demanding industrial environments. With its 316 SS construction, normally-closed SPST logic, and ability to operate under 200 PSI and 392 °F, it is ideal for chemically aggressive or high-temperature applications. Certified for hazardous locations (CE, CSA, UL) and NSF/ANSI 169 approved, this switch delivers reliable performance when safety and durability matter. MadisonSensor recommends requesting a quote for the most accurate pricing and specifications and stands ready to provide custom solutions to suit your exact requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 14 |
| Maximum Pressure (PSI) | 200 |
| Minimum Media SG | 1.13 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 2.05" |
| Slosh Shield | No |
| Approvals | CE, CSA LR26414 (Hazloc), NSF/ANSI 169, UL E150881 (Hazloc) |
| Lead Time | 10 Business Days |
| Warranty | 1 Year |
