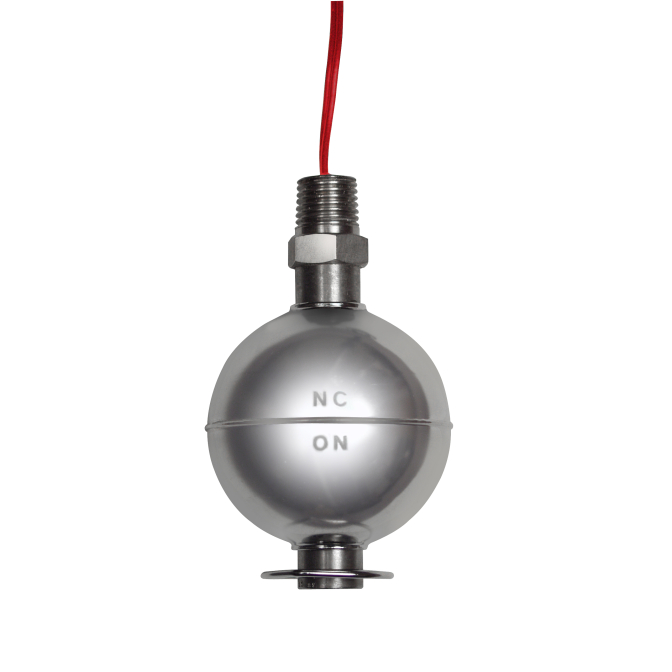

M5601-HP High Pressure Float Switch (Normally Closed)
High-pressure 750 PSI stainless-steel float switch with robust 100 W SPST logic and fast availability.
Over-pressure 750 PSI stainless-steel design
High-capacity 100 W SPST reed switch
Quick-turn, 1-day availability
The M5601-HP High-Pressure Float Switch is engineered for extreme-condition applications featuring a 316 SS float and stem and a high-power 100 W SPST reed switch. This vertical sensor is rated for pressures up to 750 PSI and temperatures up to 392 °F, making it ideal for demanding environments like petrochemical, medical, or industrial systems. Approved for NSF, CSA, CE, and cULus standards and backed by a 1-year warranty, this switch is built for reliability and swift deployment. MadisonSensor recommends requesting a quote to confirm exact pricing and specifications and offers customizable solutions for your specific needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Switch Logic | Normally Closed |
| Switch Rating | 100 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 1.0A; 120V DC, 0.40A; 24V DC, 1.0A |
| Temperature (Max-Celsius) | 200 |
| Temperature (Max-Fahrenheit) | 392 |
| Maximum Pressure (BAR) | 52 |
| Maximum Pressure (PSI) | 750 |
| Minimum Media SG | 0.88 |
| Electrical Termination | 24", 22 AWG, Teflon Insulated |
| Float Diameter | 2.05" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
