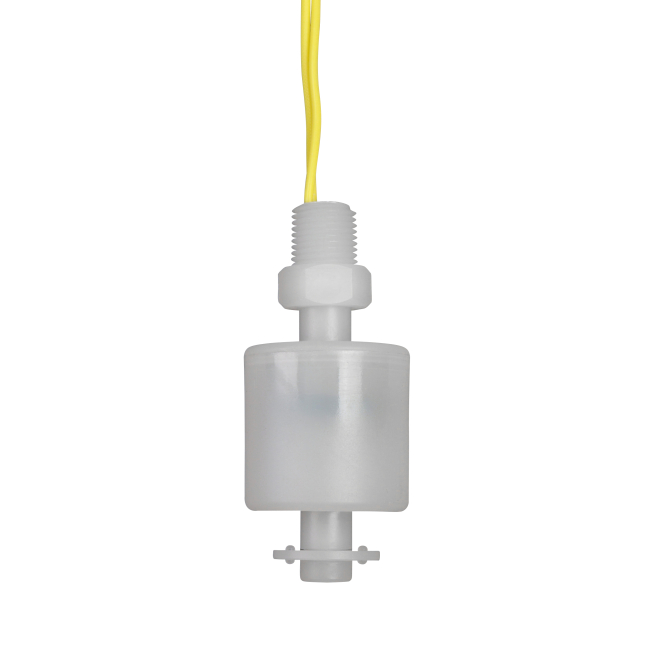

M9000-NO Single Point Level Switch (Normally Open)
Compact Kynar float switch with Normally Open logic for high-purity level control.
High-purity Kynar construction
Compact 1/8″ NPT vertical mount
Selectable SPST switch (Normally Open logic)
The M9000-NO Single Point Level Switch (Normally Open) features a compact, chemically resistant Kynar body and float, making it ideal for applications where purity and durability are essential. With Normally Open SPST logic, it reliably handles temperatures up to 221 °F and pressures up to 25 psi, offering dependable performance in food, laboratory, and precision instrument environments. This miniature level switch is trusted by OEMs for its long-lasting reed switch design and is especially suited for environments demanding chemical compatibility and miniature form factor. MadisonSensor prefers quote requests to confirm pricing and specifications and offers custom solutions tailored to your application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Kynar |
| Stem Material | Kynar |
| Switch Logic | Normally Open |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 2 |
| Maximum Pressure (PSI) | 25 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, cULus E54633, NSF/ANSI 169 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
