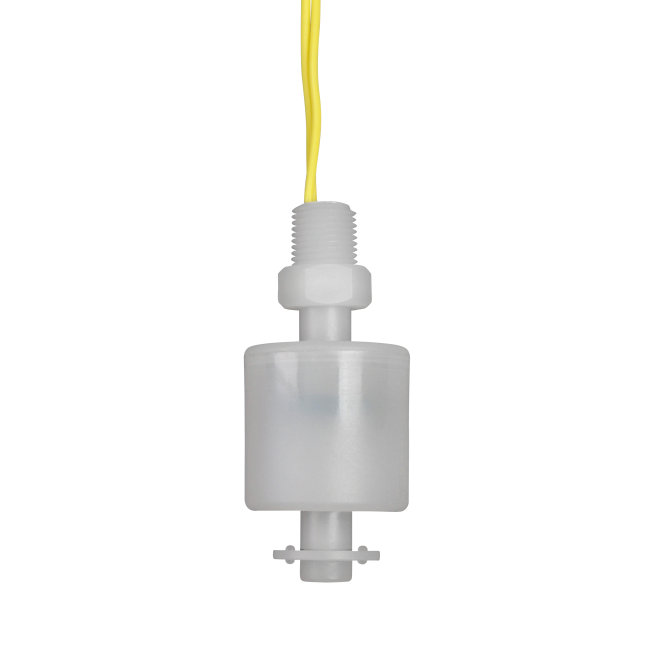

M9000 Single Point Level Switch (Normally Closed)
High-purity Kynar float switch for accurate level detection in demanding environments.
High-purity Kynar construction
Compact 1/8″ NPT vertical mount
Reliable 30 W SPST switch
The M9000 Single Point Level Switch (Normally Closed) is a compact and chemically resistant liquid level sensor designed for precise control in industrial and laboratory settings. Its Kynar stem and float ensure durability and purity, while the SPST switch provides reliable operation up to 221 °F and 25 psi. Ideal for food handling, medical instrumentation, and sensitive test equipment, this miniature switch is trusted where chemical compatibility is critical. MadisonSensor prefers quote requests to confirm pricing and specifications and offers custom solutions to meet specific project requirements.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Kynar |
| Stem Material | Kynar |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 2 |
| Maximum Pressure (PSI) | 25 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Float Diameter | 1" |
| Slosh Shield | No |
| Approvals | CE, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
