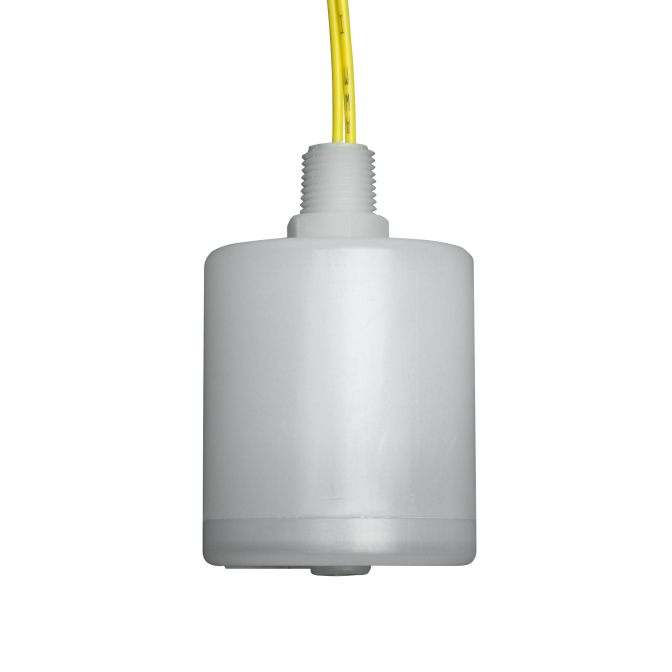

MS9000 Float Switch with Slosh Shield
$67.00
SKU:
MS9000
Lead Time5 Business Days
Kynar float switch with slosh shield for accurate vertical level sensing in agitated environments.
Kynar float and stem
Compact 1/8″ NPT vertical mounting
Slosh-shielded 30 W SPST switch
- Buy 10 for $63.65 each and save 5%
- Buy 25 for $60.30 each and save 10%
- Buy 100 for $56.95 each and save 15%
The MS9000 Float Switch with Slosh Shield is a compact, vertically oriented sensor designed for precise liquid level detection. Constructed entirely of Kynar, it offers robust chemical resistance and consistent performance across a temperature range of up to 221 °F (105 °C). The built-in slosh shield and fine reed switch (30 W SPST) ensure reliable operation in turbulent fluids. MadisonSensor recommends requesting a quote to confirm pricing and specifications and offers custom-engineered solutions suited to unique application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/8" NPT |
| Float Material | Kynar |
| Stem Material | Kynar |
| Switch Logic | Normally Closed |
| Switch Rating | 30 WATT SPST |
| Electrical Ratings | 240V AC, 0.14A; 120V AC, 0.28A; 120V DC, 0.07A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 1 |
| Maximum Pressure (PSI) | 15 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24", 22 AWG, Teflon insulated |
| Slosh Shield | Yes |
| Approvals | CE, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
