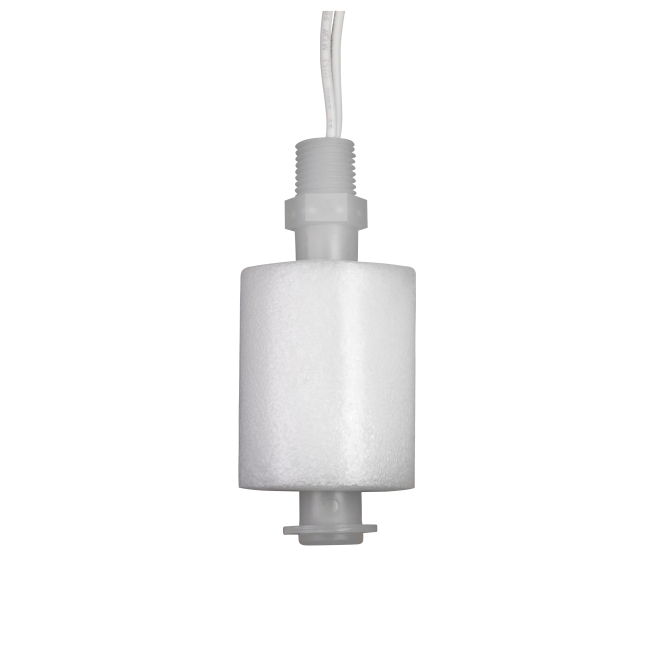

M8801 Full Size Float Switch
Reliable polypropylene float switch for high-temperature industrial level control.
Robust polypropylene construction
High-power 100 W SPST switching
Compact ¼″ NPT mounting
The M8801 Full Size Float Switch is a durable, vertically oriented liquid level sensor engineered for demanding industrial applications. With a sturdy polypropylene body and float, it reliably operates up to 221 °F and 100 psi. The robust 100 W SPST switch logic is ideal for controlling pumps, alarms, and process systems where precision and reliability are crucial. Trusted across industries, it’s easy to integrate into existing setups. MadisonSensor recommends requesting a quote for price and specs confirmation and offers custom-tailored solutions to meet unique application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 100 WATT SPST |
| Electrical Ratings | 240 VAC, 0.40A; 120 VAC, 0.50A; 120 VDC, 0.40A; 24 VDC, 1.00A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.96 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 1.5" |
| Slosh Shield | No |
| Approvals | CE |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
