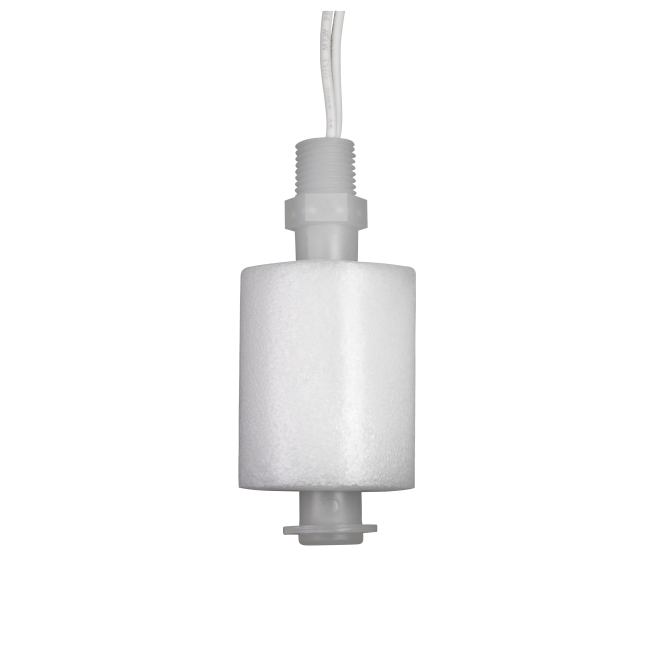

M8800-SPDT Full Size Float Switch
$89.00
SKU:
M8800-SPDT
Lead Time5 Business Days
Sturdy SPDT float switch engineered for precise, high-temperature level control.
Durable polypropylene body
Compact ¼″ NPT mounting
Dual-contact SPDT output
- Buy 10 for $84.55 each and save 5%
- Buy 25 for $80.10 each and save 10%
- Buy 100 for $75.65 each and save 15%
The M8800-SPDT Full Size Float Switch is a reliable vertical liquid level sensor designed for industrial applications requiring SPDT switching. It suits environments up to 221 °F and 100 psi, with a robust polypropylene construction that ensures chemical resistance and longevity. Ideal for pump control, overfill alarms, and process automation, it's trusted by professionals who value precision and durability. MadisonSensor recommends requesting a quote to confirm price and specifications, and offers custom solutions to match specific application needs.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Open, Normally Closed |
| Switch Rating | 25 WATT SPDT |
| Electrical Ratings | 120V AC, 0.28A; 24V DC, 0.28A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.96 |
| Electrical Termination | 24”, 22 AWG, Teflon insulated |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633 |
| Lead Time | 5 Business Days |
| Warranty | 1 Year |
