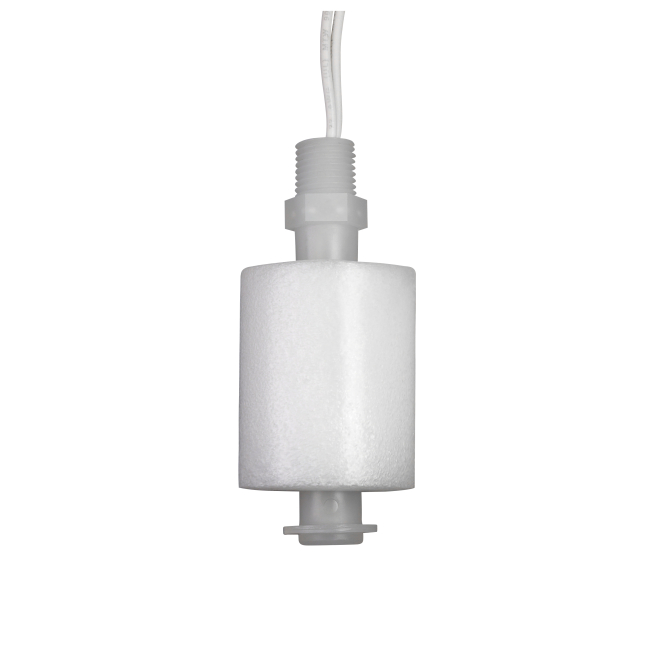

M8800 Single Point Level Switch
Heavy-duty polypropylene vertical float switch (NC SPST), rated 221 °F/100 PSI, ship-ready next business day.
FDA-grade polypropylene construction (stem and float)
Robust 60 W SPST switch, normally closed logic
Rated for harsh conditions (221 °F / 100 PSI), available next day
The M8800 Single Point Level Switch is an economical and dependable float sensor crafted entirely from polypropylene, making it ideal for corrosive or food-related environments. It features a 60 W SPST switch in a normally closed configuration, providing reliable liquid detection via a vertical ¼″ NPT mounting. With a durable design rated to 221 °F and 100 PSI—and certified to CE, CSA, UL, and NSF standards—this switch is typically in stock and ships within one business day. MadisonSensor recommends submitting a quote request to confirm current pricing and specifications and stands ready to assist with custom solutions tailored to your specific application.
| Sensor Type | Float |
|---|---|
| Orientation | Vertical |
| Mounting Type & Size | 1/4" NPT |
| Float Material | Polypropylene |
| Stem Material | Polypropylene |
| Switch Logic | Normally Closed |
| Switch Rating | 60 WATT SPST |
| Electrical Ratings | 240V AC, 0.40A; 120V AC, 0.50A; 120V DC, 0.20A; 24V DC, 0.50A |
| Temperature (Max-Celsius) | 105 |
| Temperature (Max-Fahrenheit) | 221 |
| Maximum Pressure (BAR) | 7 |
| Maximum Pressure (PSI) | 100 |
| Minimum Media SG | 0.94 |
| Electrical Termination | 24”, 22 AWG, MTW insulated |
| Float Diameter | 1.5" |
| Slosh Shield | No |
| Approvals | CE, CSA LR56150, cULus E54633, NSF/ANSI 169 |
| Lead Time | 1 Business Day |
| Warranty | 1 Year |
